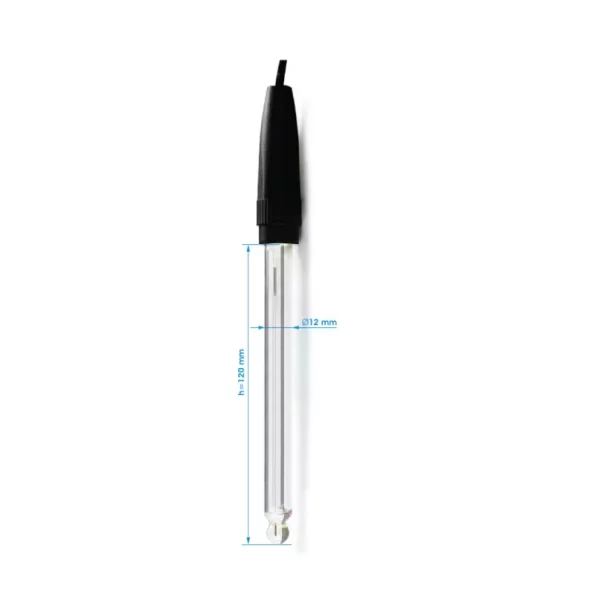

Clean PH Combination Sensor (CS1020)
- pH range 0 – 14.
- zero point (pH) 7.00 ± 0.25.
- temperature range 0 – 80 °C.
- Membrane resistance < 4 00 MΩ.
Clean PH Combination Sensor (CS1020) is designed for specialty applications for immersion or in-line mounting. The reference cell features a double-junction design for extended service life, and a built-in solution ground.
FEATURES OF CLEAN PH COMBINATION SENSOR (CS1020)
- Order number CS10201B.
- pH range 0 – 14.
- zero point (pH) 7.00 ± 0.25.
- temperature range 0 – 80 °C.
- Shaft material Glass.
- Membrane glass B11.
- Membrane resistance < 4 00 MΩ.
- Reference system Ag/ AgCl/ KCl.
- Reference Diaphragm one porous ceramics.
- junction Single.
- electrode head Standard Lab.
- Cable length 1m.
- Connector BNC.
- Storage 3.3 mol/L KCl.
SPECIFICATION OF CLEAN PH COMBINATION SENSOR (CS1020)
| Name | Details |
| Model | CS1020 |
| Brand | Clean |
| Origin | Taiwan |
| Order number | CS10201B |
| former order number | – |
| pH range | 0 – 14 |
| zero point (pH) | 7.00 ± 0.25 |
| temperature range | 0 – 80 °C |
| temperature probe | – |
| Shaft material | Glass |
| Membrane glass | B11 |
| Membrane resistance | < 4 00 MΩ |
| Reference system | Ag/ AgCl/ KCl |
| Reference Diaphragm | one porous ceramics |
| junction | Single |
| electrode head | Standard Lab |
| Cable length | 1m |
| Connector | BNC |
| cell constant (cm-1) | – |
| cell type | – |
| indicating metal | – |
| Storage | 3.3 mol/L KCl |
