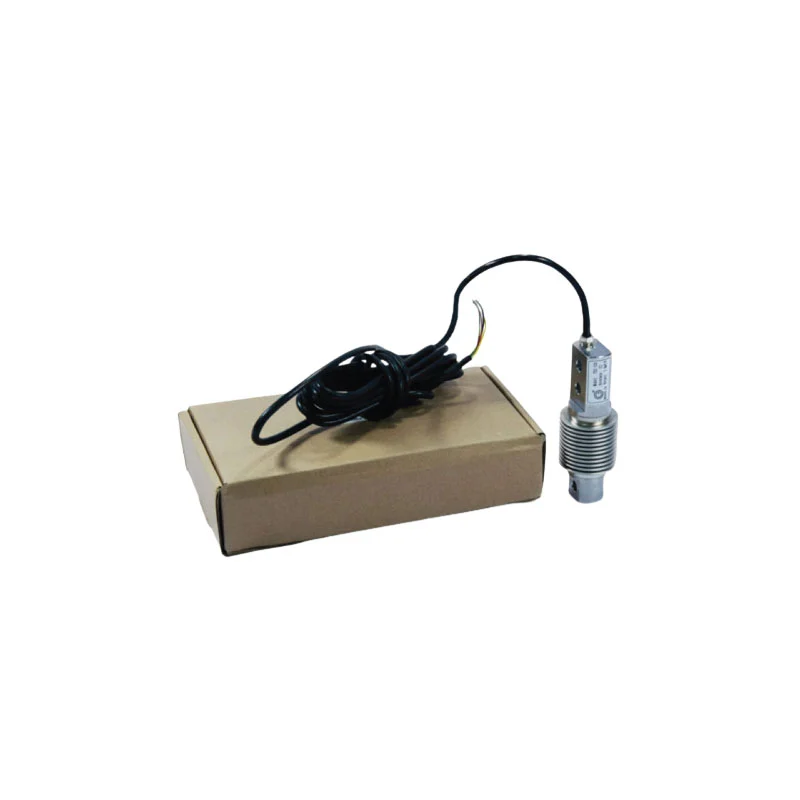

TZC-328H is a welded bending beam load cell manufactured in stainless steel. The low profile, high accuracy, and sealing make this bending type load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales, and a variety of other applications where sealed cells are required.
FEATURES OF GUANG CE 100KG SINGLE POINT LOAD CELL
SPECIFICATION OF GUANG CE 100KG SINGLE POINT LOAD CELL
| Name | Details |
| Model | TZC-328H |
| Brand | GUANG CE |
| Origin | China |
| Rated Capacities | 5，10，20，50，100，200，500（kg） |
| Rated Output | 2.0 mV/V±0.25% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.02 %R.O. |
| 30mins Creep | 0.02 %R.O. |
| 30mins Return | 0.02 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 385±15 Ω |
| Output Impedance | 350±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Steel Alloy; Stainless Steel |
| Protection Class | IP66 / IP68 |
| Cable | φ5×3m |
| Recommended Platform Size | |
| Mode of Connection | Red（EXC ）,Black（EXC-）,Green（SIG ）,White（SIG-） |
