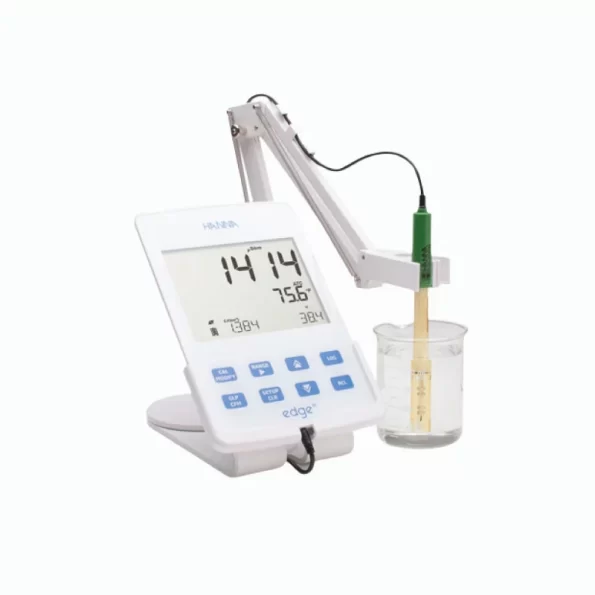

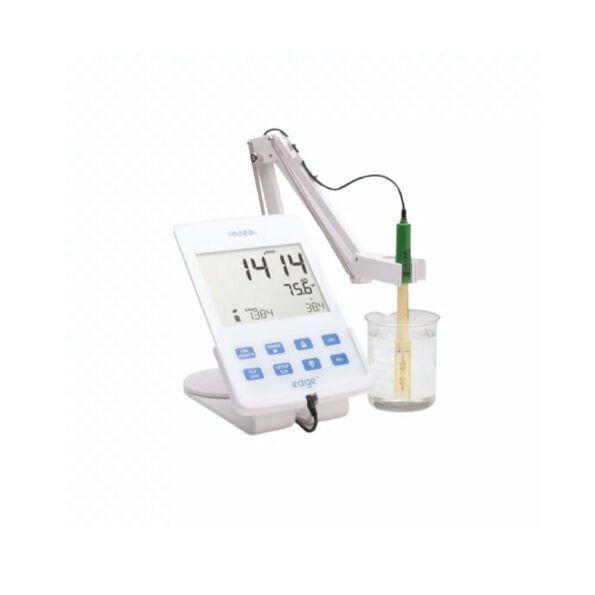

Hanna Edge® Dedicated Conductivity/TDS/Salinity Meter (HI2003)
- Salinity (% NaCl) Calibration Single point witd HI 7037L Standard.
- Salinity (PSU) Range 2.00 to 42.00 PSU.
- Salinity (PSU) Resolution 0.01 PSU.
- Salinity (PSU) Accuracy ±1% of reading.
Hanna Instruments is proud to introduce the world’s most innovative Conductivity/TDS/Salinity meter: edge®. edge®’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world-class R&D. edge® is a single meter that can measure Conductivity, TDS and Salinity and is incredibly easy to use.
FEATURES OF Edge® Dedicated Conductivity/TDS/Salinity Meter (HI2003)
- EC Resolution 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm.
- EC Accuracy ±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater).
- TDS Resolution 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L.
- TDS Accuracy ±1% of reading (±0.03 ppm or 1 digit, whichever is greater).
- TDS Calibration tdrough EC calibration.
- EC/TDS Temperature Compensation Automatic -5 to 100º C (23 to 212º F); NoTC – none absolute conductivity.
- Temperature Correction Coefficient 0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC.
- EC to TDS Conversion Factor 0.40 to 0.80 (default value is 0.50).
- Salinity (% NaCl) Range 0.0 to 400.0% NaCl.
- Salinity (% NaCl) Resolution 0.1% NaCl.
- Salinity (% NaCl) Accuracy ±1% of reading.
- Salinity (% NaCl) Calibration Single point witd HI 7037L Standard.
- Salinity (PSU) Range 2.00 to 42.00 PSU.
- Salinity (PSU) Resolution 0.01 PSU.
- Salinity (PSU) Accuracy ±1% of reading.
- Salinity Range 0.0 to 80.0 g/L*.
- Salinity Resolution (ppt) 0.01 g/L.
- Salinity Accuracy (ppt) ±1% of reading.
- Temperature Range -20.0 to 120.0 ºC ; -4.0 to 248.0 °F**.
- Temperature Resolution 0.1 ºC; 0.1 ºF.
- Temperature Accuracy ±0.5 ºC; ±0.9 ºF.
- EC/TDS Probe HI763100 EC/temperature probe.
- Logging Memory Up to 1000 records.
- Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage.
- Battery Type/Life Built-in rechargeable battery witd up to 8 hours of continuous use.
- Power Supply 5 VDC adapter (included).
- Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing.
- Dimensions 202 x 140 x 12.7mm (8” x 5.5” x 0.5”).
- Weight 250 g (8.82 oz).
- Ordering Information edge®EC HI2003 includes.
- Notes Not available in basic mode.
SPECIFICATION OF Edge® Dedicated Conductivity/TDS/Salinity Meter (HI2003)
| Name | Details |
| Model | HI2003 |
| Brand | Hanna |
| Origin | Romania |
| Product Name | edge® Dedicated Conductivity/TDS/Salinity Meter – HI2003 |
| Quote Required | Yes |
| EC Range | 0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)** |
| EC Resolution | 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater) |
| EC Calibration | 1 point offset calibration (0.00 μS/cm in air), 1 point slope calibration in EC standard 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm |
| TDS Range | 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)** |
| TDS Resolution | 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L |
| TDS Accuracy | ±1% of reading (±0.03 ppm or 1 digit, whichever is greater) |
| TDS Calibration | tdrough EC calibration |
| EC/TDS Temperature Compensation | Automatic -5 to 100º C (23 to 212º F); NoTC – none absolute conductivity. |
| Temperature Correction Coefficient | 0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC |
| EC to TDS Conversion Factor | 0.40 to 0.80 (default value is 0.50) |
| Salinity (% NaCl) Range | 0.0 to 400.0% NaCl |
| Salinity (% NaCl) Resolution | 0.1% NaCl |
| Salinity (% NaCl) Accuracy | ±1% of reading |
| Salinity (% NaCl) Calibration | Single point witd HI 7037L Standard |
| Salinity (PSU) Range | 2.00 to 42.00 PSU |
| Salinity (PSU) Resolution | 0.01 PSU |
| Salinity (PSU) Accuracy | ±1% of reading |
| Salinity Range | 0.0 to 80.0 g/L* |
| Salinity Resolution (ppt) | 0.01 g/L |
| Salinity Accuracy (ppt) | ±1% of reading |
| Temperature Range | -20.0 to 120.0 ºC ; -4.0 to 248.0 °F** |
| Temperature Resolution | 0.1 ºC; 0.1 ºF |
| Temperature Accuracy | ±0.5 ºC; ±0.9 ºF |
| EC/TDS Probe | HI763100 EC/temperature probe |
| Logging Type | Manual Log on Demand (Max. 200 logs); Manual Log on Stability (Max. 200 logs); Interval Logging 100 lots, Max. 600 logs/lot |
| Logging Memory | Up to 1000 records |
| Connectivity | 1 micro USB port for charging and PC connectivity, 1 USB port for storage |
| GLP | yes |
| Battery Type/Life | Built-in rechargeable battery witd up to 8 hours of continuous use |
| Power Supply | 5 VDC adapter (included) |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 202 x 140 x 12.7mm (8” x 5.5” x 0.5”) |
| Weight | 250 g (8.82 oz) |
| Ordering Information | edge®EC HI2003 includes |
| Notes | Not available in basic mode |
