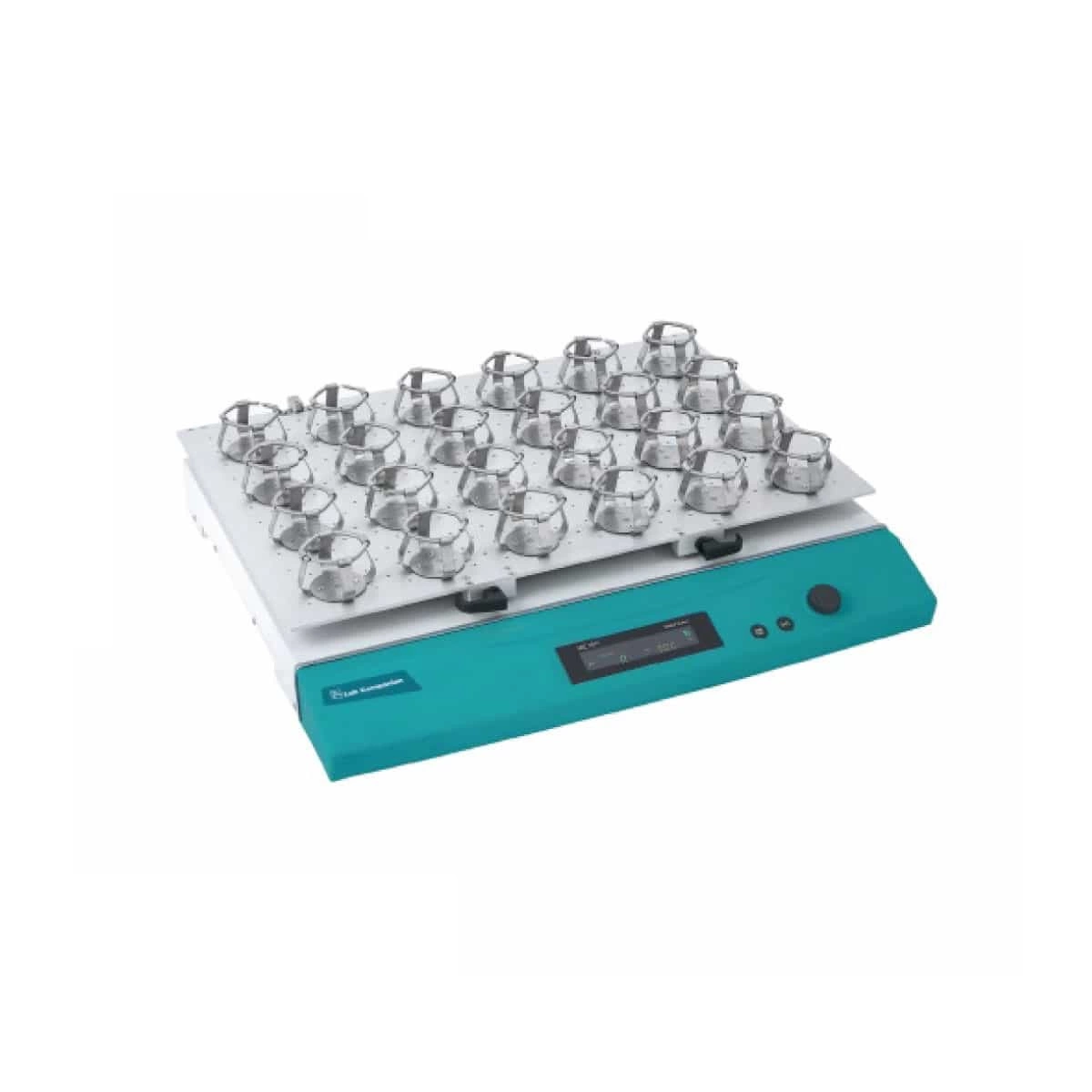

JEOTECH 24 Pot Powerful Driving System Laboratory Open-air Shaker (SKC – 7075) is used to mix, blend, or agitate substances in a tube or flask by shaking.it is mainly used in the fields of chemistry and biology in textile garments labs. Emergency medical centers, medical schools, scientific laboratories Can be used Shaker . JEOTECH 24 Pot Powerful Driving System Laboratory Open-air Shaker (SKC – 7075) contains an oscillating board that is used to place the flasks, beakers, or test tubes. The JEOTECH 24 Pot Powerful Driving System Laboratory Open-air Shaker (SKC – 7075) has a circular shaking motion with a slow speed (30-500 rpm). it is suitable for culturing microbes, washing blots, and general mixing. Moreover, This Shaker can be modified by placing it in an incubator to create an incubator shaker due to its low temperature and vibrations.
FEATURES OF JEOTECH 24 POT POWERFUL DRIVING SYSTEM LABORATORY OPEN-AIR SHAKER (SKC – 7075)
- User-friendly control panel.
- Competitive high shaking speed up to 500 rpm.
- Easy-set digital timer. (1 min. to 999 hr. 59 min.).
- Microprocessor PID control maintaining a constant speed.
- RS-232 port and USB port for external control and data collection.
SPECIFICATION OF JEOTECH 24 POT POWERFUL DRIVING SYSTEM LABORATORY OPEN-AIR SHAKER (SKC – 7075)
| Name |
Details |
| Model |
SKC-7075 |
| Brand |
JEOTECH |
| Origin |
Korea |
| Control system |
PID feedback control |
| Display |
VFD |
| Motion type |
Orbital |
| Amplitude size (mm / inch, dia) |
19 mm / 0.75 inch |
| Speed range |
(30 to 500) rpm |
| Accuracy at 100 rpm |
±1 |
| Platform (W×D) (mm / inch) |
755×520 / 29.7×20.5 (Small)885×520 / 34.8×20.5 (Large) |
| Dimension of Body (W×D×H) |
(754.8×662×122.2) mm(29.7×26.1×4.8) Inch |
| Weight (Kg / lbs) |
75 / 165.4 |
| Electrical requirements (230V, 50 / 60Hz) |
0.4A |
| Body Cat. No. |
AAH30205K |
| Electrical Requirements (120V, 60Hz) |
0.8A |
| Platform Cat. No. |
AAH30206U |
| Warranty |
One Year |
PROGRAMMING PARAMETERS OF JEOTECH 24 POT POWERFUL DRIVING SYSTEM LABORATORY OPEN-AIR SHAKER (SKC – 7075)
| Name |
Details |
| Max. number of segments in one(1) Pattern(cycle) |
20 |
| Max. number of patterns(cycle) saved |
20 |
| Shaking motion- Forward & Backward, Pause |
1min. to 99hr. 59min. (Time)30 to 500 (rpm) |
