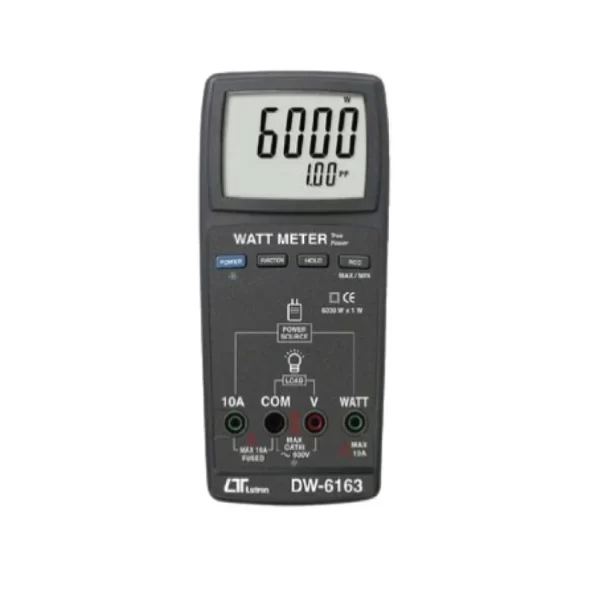

Lutron Digital Watt Meter (DW-6163)
- Display LCD size 28 mm x 19 mm.
- Zero Automatic adjustment.
- Sampling Time Approx. 1 second .
- Data Hold Freeze the display reading.
Lutron Digital Watt Meter (DW-6163) has professional 1 W solution digital watt meter display, reliability, durability, tackle operation, 6000W x 1W, ACV 600V x 0.1V, ACA 10A x 10mA, valid aptitude and broad range 0W to 6000W, authentic RMS measurement ACV/ ACA, super large LCD, dual display at related period, full take group auto range, memory wedding album, data maintenance, RS232/ USB computer interface, built-in low battery indicator, built-in backlight easy to readout, carrying out DC 9V or AC to DC 9V adapter.
FEATURES OF LUTRON DIGITAL WATT METER (DW-6163)
- Display LCD size : 28 mm x 19 mm.
- Zero Automatic adjustment.
- Sampling Time Approx. 1 second .
- Data Hold Freeze the display reading.
- Memory Recall Maximum & Minimum value .
- Operation Temperature 0℃ to 50℃ ( 32℉ to 122℉).
- Operation Humidity Less than 80% RH.
- Power Supply Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent.
- Power Consumption/ Approx. DC 10 mA/.
- Weight 398 g/0.88 LB.
- Dimension 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).
SPECIFICATION OF LUTRON DIGITAL WATT METER (DW-6163)
| Name | Details |
| Model | DW-6163 |
| Brand | Lutron |
| Origin | Taiwan |
| Circuit | Custom one-chip of microprocessor LSIcircuit. |
| Display | Large LCD display max. reading 9999.Digit size : 21.8 x 8.5 mm.Dual value display with backlight. |
| Display | LCD size : 28 mm x 19 mm. |
| MeasurementUnit | ACV 0 to 600.0 V.ACA 0.01 to 10.00 A.WATT 0 to 6000 W.PF 0.01 to 1.00. |
| Over input | ” —- ” mark indication . |
| Zero | Automatic adjustment. |
| Sampling Time | Approx. 1 second . |
| Data Hold | Freeze the display reading. |
| Memory Recall | Maximum & Minimum value . |
| Data output | RS232 / USB PC Computer interface.* Connect the optional RS232 cable.UPCB – 02 will get the RS232 plug.* Connect the optional USB cable.USB – 01 will get the USB plug. |
| OperationTemperature | 0℃ to 50℃ ( 32℉ to 122℉). |
| OperationHumidity | Less than 80% RH. |
| Power Supply | Alkaline or Heavy duty type DC 9V battery006P , MN1604 (PP3) or equivalent. |
| PowerConsumption/Weight | Approx. DC 10 mA/.398 g/0.88 LB. |
| Dimension | 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ). |
| Accessories Included | Instruction manual………………….. 1 PC.Test lead (Red & Black)……………. 1 Pair. |
| Optional Accessory | AC TO DC 9V adapter.USB cable , USB – 01.RS232 cable , UPCB – 02.Data Acquisition software, SW-U801-WIN.Excel Data Acquisition software, SW-E802. |
