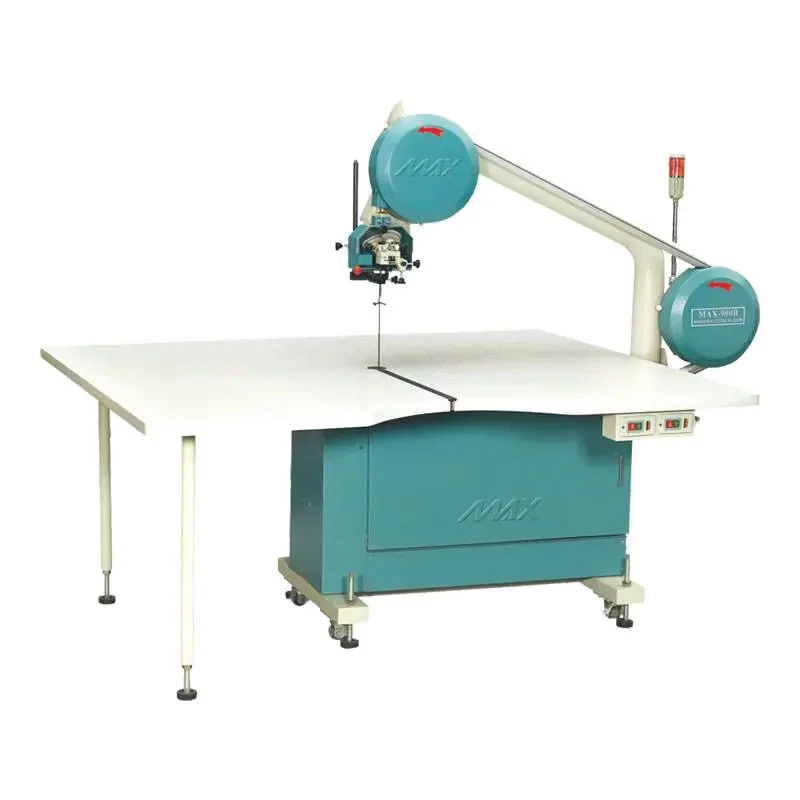

Max Fabric Band Knife Cutting Machine (MAX-700A/B)
- Table specification 1200X1500.
- Cutting height 180mm.
- Knife snan 700mm.
- Knife size 0.45X10X3500.
Max Fabric Band Knife Cutting Machine (MAX-700A/B) is important equipment used in garments manufacturing factory. A band knife is a power tool used for cutting cloth. Very similar in operation to a band saw, it has an endless loop blade and the material to be cut is supported by a flat table.
FEATURES OF MAX FABRIC BAND KNIFE CUTTING MACHINE (MAX-700A/B)
- Voltage 220/380.
- Motor 1P750 3P550 / 550.
- Air blower 370.
- Table specification 1200X1500.
- Cutting height 180mm.
- Knife snan 700mm.
- Knife size 0.45X10X3500.
- Packing size(mm) 1540X860X1780.
- NW/GW(KG) 230/295.
SPECIFICATION OF MAX FABRIC BAND KNIFE CUTTING MACHINE (MAX-700A/B)
| Name | Details |
|---|---|
| Model | MAX-700A/B |
| Brand | Max |
| Origin | China |
| Voltage | 220/380 |
| Motor | 1P750 3P550 / 550 |
| Air blower | 370 |
| Table specification | 1200X1500 |
| Cutting height | 180mm |
| Knife snan | 700mm |
| Knife size | 0.45X10X3500 |
| Packing size(mm) | 1540X860X1780 |
| NW/GW(KG) | 230/295 |
PACKING INFORMATION OF MAX FABRIC BAND KNIFE CUTTING MACHINE (MAX-700A/B)
VIDEO REVIEW OF MAX FABRIC BAND KNIFE CUTTING MACHINE (MAX-700A/B)
