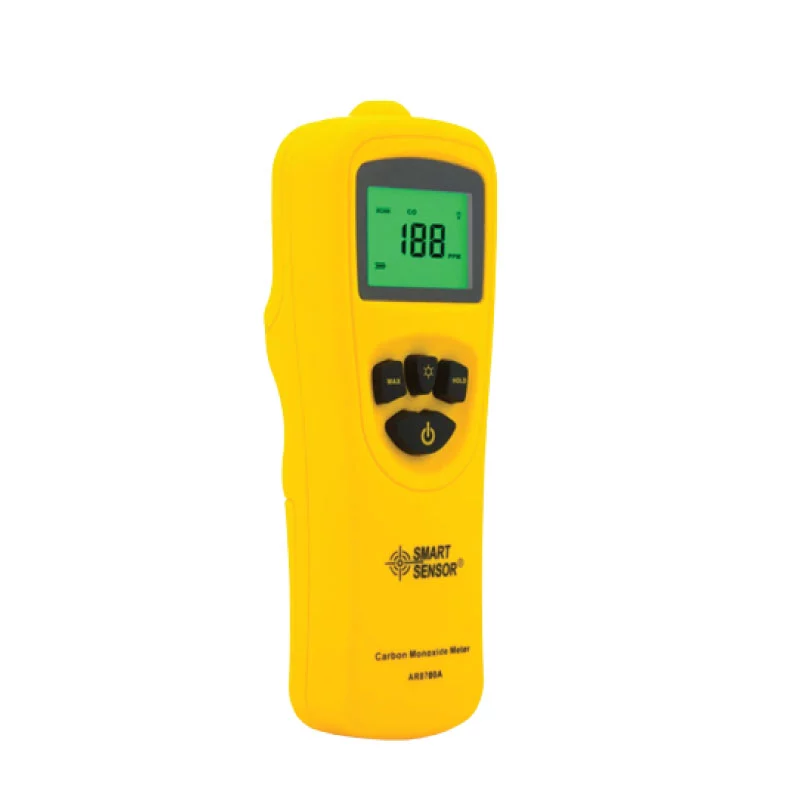

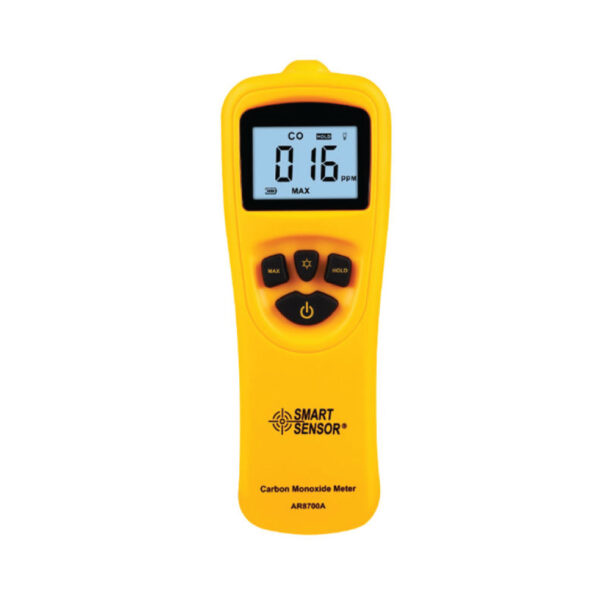

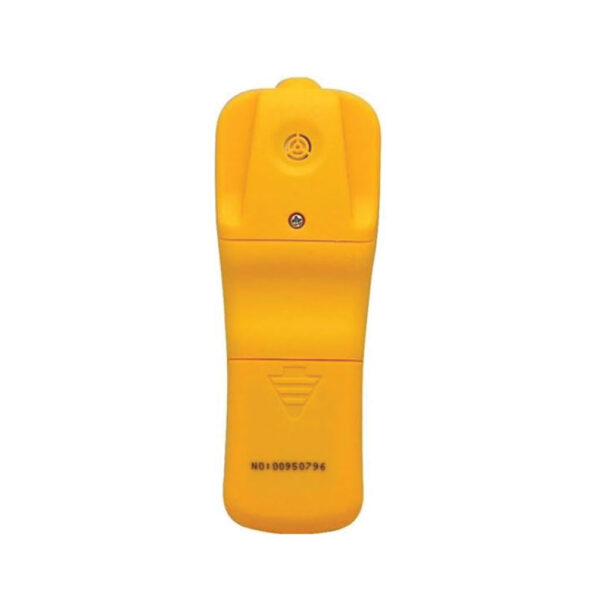

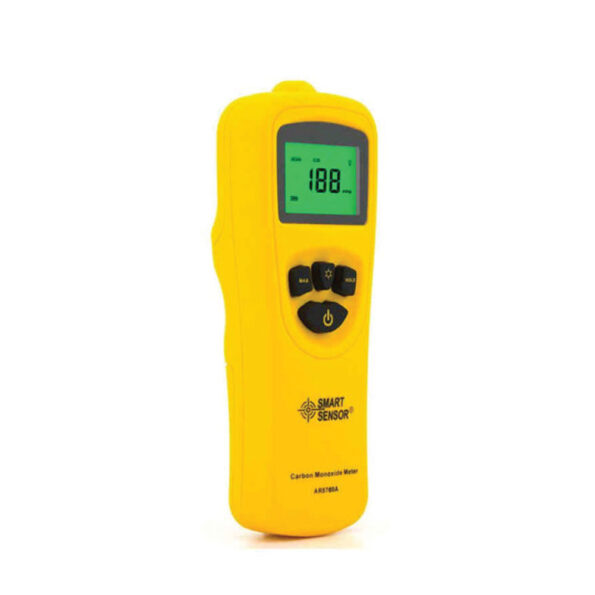

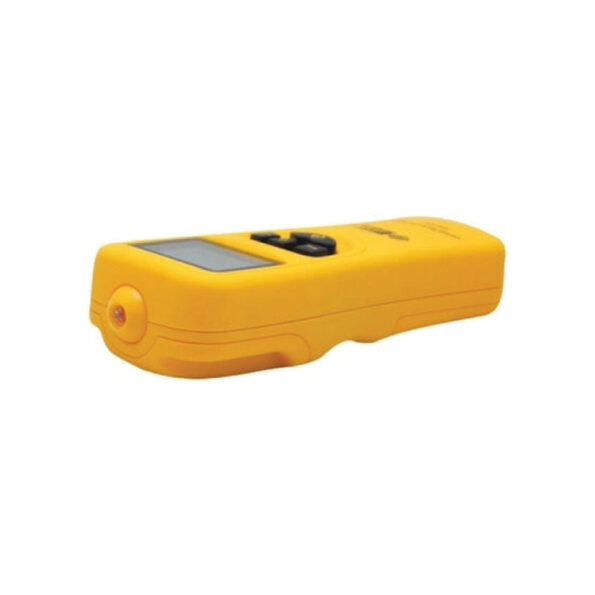

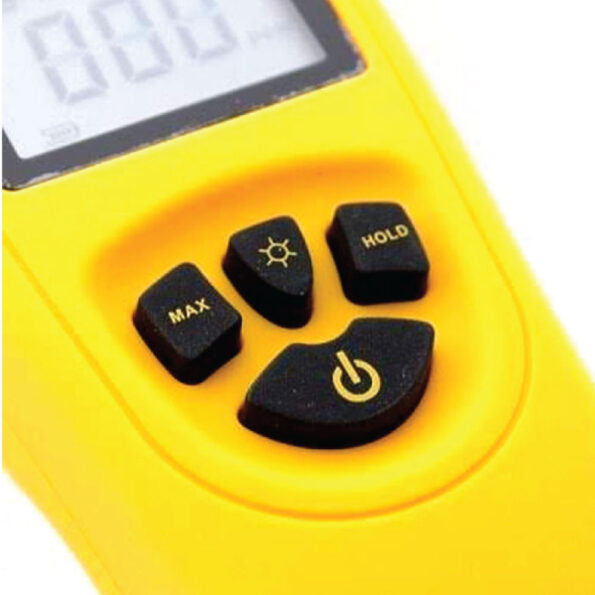

AR8700A SMART SENSOR Carbon Monoxide Meter
৳ 16,000.00
- Accuracy ±5%or ±10PPM.
- Response time < 1 sec.
- Operating Temperature 0~50°c.
- Measurement Range 0~1000PPM.
SMART SENSOR Carbon Monoxide Meter (AR8700A) is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. A gas detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave. This type of device is important because there are many gases that can be harmful to organic life.Gas detectors can be used to detect combustible, flammable and toxic gases, and oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacturing processes and emerging technologies such as photovoltaic. They may also be used in firefighting.
FEATURES OF CARBON MONOXIDE METER (AR8700A)
- Accuracy ±5%or ±10PPM.
- Resolution 1PPM.
- Response time < 1 sec.
- Warm up Period <2 sec.
- Operating Temperature 0~50°c.
- Measurement Range 0~1000PPM.
SPECIFICATION OF CARBON MONOXIDE METER (AR8700A)
| Name | Details |
|---|---|
| Model: | AR8700A |
| Brand: | SMART SENSOR |
| Origin: | China |
| Manufactured By: | China |
| Condition: | New |
| Gas Type: | Refrigerant Gas, SF-6 Gas |
| Measurement Range: | 0~1000PPM |
| Accuracy: | ±5%or ±10PPM |
| Resolution: | 1PPM |
| Response time: | Less than or equal 1 sec |
| Warm up Period: | <2 sec |
| Data Hold Function: | Yes |
| Low Battery Indication: | Yes |
| Sensor & Life Span: | electrochemical transducer, 3 years |
| Operating Temperature: | 0~50°c |
| Auto Measurement Range Change: | Yes |
| Backlight: | Yes |
| Auto Power off: | Yes |

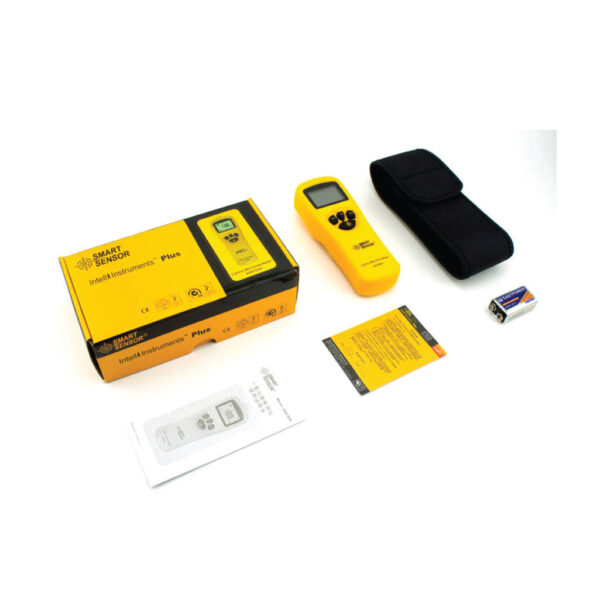

PACKING INFORMATION OF CARBON MONOXIDE METER (AR8700A)
| Name | Details |
|---|---|
| Power: | 9VDC battery |
| Product Net Weight: | 162g |
| Product Size: | 158.5*59*41mm |
| Packing Style: | Gift Box |
