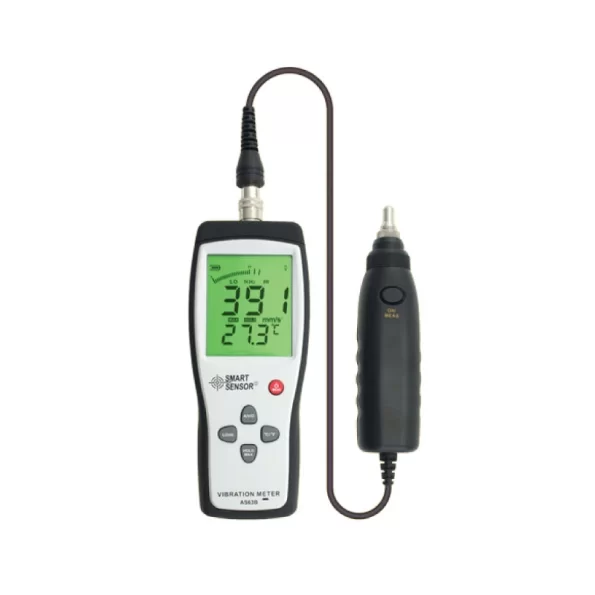

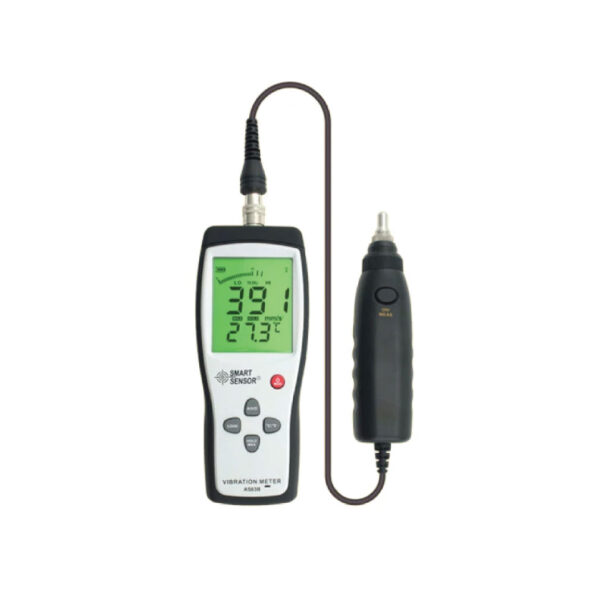

AS63B SMART SENSOR Detached Probe Type Vibration Meter
৳ 18,500.00
- Accuracy±5%H ±2digits .
- Acceleration Range 0.1~199.9m/s2.
- Velocity Range 0.1~199.9m/s .
- Displacement Range 0.001~1.999mm .
The Piezoelectric Acceleration Transducer is used by the SMART SENSOR Detached Probe Type Vibration Meter (AS63B), also known as vibration severity, to convert the vibration signal into an electrical signal, analyze the input signals, and display the vibration’s acceleration, speed, and shift. Pofrewer, petrochemical, machinery manufacturing, metallurgy, automotive, and other industries use it extensively.
FEATURES OF DETACHED PROBE TYPE VIBRATION METER (AS63B)
- Accuracy±5%H ±2digits .
- Acceleration Range 0.1~199.9m/s2.
- Velocity Range 0.1~199.9m/s .
- Displacement Range 0.001~1.999mm .
- Velocity Frequency Range 10Hz~1KHz.
- Displacement Frequency Range 10Hz~1KHz.
- Acceleration Frequency Range 10Hz~1KHz (LO) &1KHz~15KHz (HI).
- Measuring Principle Piezoelectric Ceramic Accelerometer (shear-type).
SPECIFICATION OF DETACHED PROBE TYPE VIBRATION METER (AS63B)
| Name | Details |
|---|---|
| Model: | AS63B |
| Brand: | SMART SENSOR |
| Origin: | China |
| Manufactured By: | China |
| Condition: | New |
| Measuring Principle: | Piezoelectric Ceramic Accelerometer(shear-type) |
| Acceleration Range: | 0.1~199.9m/s2 |
| Velocity Range: | 0.1~199.9m/s |
| Displacement Range: | 0.001~1.999mm |
| Acceleration Frequency Range: | 10Hz~1KHz (LO)1KHz~15KHz (HI) |
| Velocity Frequency Range: | 10Hz~1KHz |
| Displacement Frequency Range: | 10Hz~1KHz |
| Accuracy: | ±5%H ±2 digits |
| Max Hold Function: | √ |
| Temperature Measurement: | √ |
| ℃/℉Selection: | √ |
PACKING INFORMATION OF DETACHED PROBE TYPE VIBRATION METER (AS63B)
| Name | Details |
|---|---|
| Power: | 9V Battery |
| Product Net Weight: | 155g |
| Product Size: | 159*66*31mm |
| Packing Style: | Gift Box |
| Standard Quantity Per Carton: | 12PCS |
| Standard Carton Size: | 45*32*55cm |
| Standard Carton Gross Weight: | 16.33KG |
