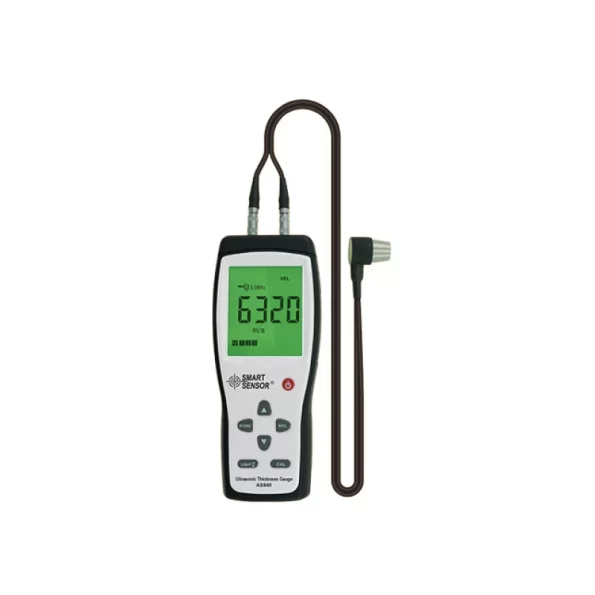

AS840 SMART SENSOR Ultrasonic Thickness Gauge
৳ 9,500.00
- Accuracy ±(1%H 0.1)mm.
- Resolution 0.1mm.
- Sound Velocity Range 1000~9999m/s.
- Measuring Range 1.2~225mm.
All industrial measurement fields now routinely use the SMART SENSOR Ultrasonic Thickness Gauge (AS840) for non-destructive testing to verify material properties like thickness measurement. This technology has a wide range of potential uses because it can measure thickness without requiring access to both sides of the test piece.
FEATURES OF ULTRASONIC THICKNESS GAUGE (AS840)
- Accuracy ±(1%H 0.1)mm.
- Resolution 0.1mm.
- Sound Velocity Range 1000~9999m/s.
- Frequency 5MHz.
- Operation Temperature 0°C~40°C.
- Measuring Range 1.2~225mm.
- Minimum limit for tube measuring Ф20*3mm(steel)
SPECIFICATION OF ULTRASONIC THICKNESS GAUGE (AS840)
| Name | Details |
|---|---|
| Model: | AS840 |
| Brand: | SMART SENSOR |
| Origin: | China |
| Manufactured By: | China |
| Condition: | New |
| Measuring Range: | 1.2~225mm |
| Accuracy: | ±(1%H 0.1)mm |
| Resolution: | 0.1mm |
| Sound Velocity Range: | 1000~9999m/s |
| Frequency: | 5MHz |
| Operation Temperature: | 0°C~40°C |
| Minimum limit for Tube measuring: | Ф20*3mm(steel) |
| Auto Zero Calibration: | √ |
| Auto linear compensation: | √ |
| Coupling Indicator: | √ |
| Metric / Imperial Switchable: | — |
| Battery Indication: | √ |
| Auto Power Off: | √ |
PACKING INFORMATION OF ULTRASONIC THICKNESS GAUGE (AS840)
| Name | Details |
|---|---|
| Power: | 9V battery |
| Product Net Weight: | 200g |
| Product Size: | 150*80.5*34mm |
| Packing Style: | Gift Box |
| Standard Quantity Per Carton: | 24 |
| Standard Carton Size: | 47*38*55cm |
| Standard Carton Gross Weight: | 19.5KG |
