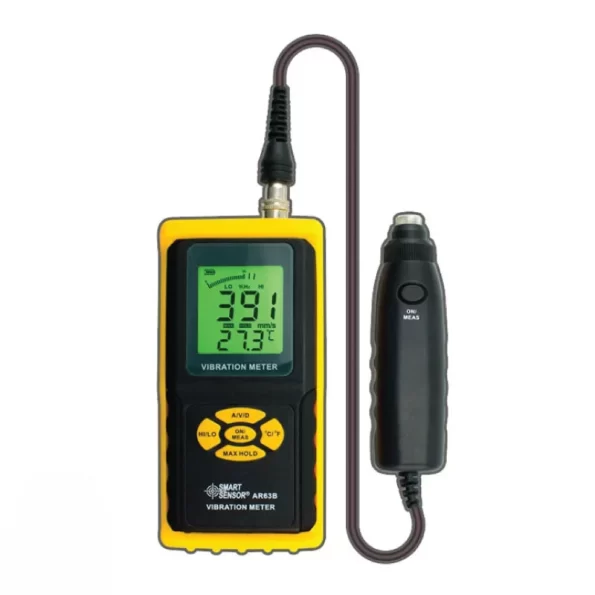

AR63B SMART SENSOR Vibration Meter

৳ 25,000.00

LCD Display 3.5 digits display.
Operating Condition 0C ~40C.
Measuring Accuracy 5%Hz 2digits.
Accelerated Measuring Range 0.1~199.9m/s2 (Peak value)

Description

SMART SENSOR Vibration Meter (AR63B) (also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

FEATURES OF VIBRATION METER (AR63B)

LCD Display 3.5 digits display.
Operating Condition 0C ~40C.
Measuring Accuracy 5%Hz 2digits.
Accelerated Measuring Range 0.1~199.9m/s2 (Peak value)
Velocity Measuring Range 0.1~199.9mm/s (Effective value)
Measurement Frequency Range of Acceleration 10HZ~1KHZ (LO) 1KHZ~15KHZ (HI).
Measurement Frequency Range of Velocity 10HZ~1KHZ (LO).
Measurement Frequency Range of Displacement 10HZ~1KHZ (LO).

SPECIFICATION OF VIBRATION METER (AR63B)

Name	Details
Model:	AR63B
Brand:	SMART SENSOR
Origin:	China
Manufactured By:	China
Condition:	New
Measuring Principle:	Piezoelectric Ceramic Accelerometer (shear-type)
Accelerated Measuring Range:	0.1~199.9m/s2 (Peak value)
Velocity Measuring Range:	0.1~199.9mm/s (Effective value)
Measurement Frequency Range of Acceleration:	10HZ~1KHZ (LO) 1KHZ~15KHZ (HI)
Measurement Frequency Range of Velocity:	10HZ~1KHZ (LO)
Measurement Frequency Range of Displacement:	10HZ~1KHZ (LO)
Measuring Accuracy:	5%Hz 2digits
Signal Output:	—
LCD Display:	3.5 digits display
Backlight Display:	√
Auto Power off:	√
Temperature Measurement:	√
C/F Selection:	√
Maximum Reading Hold Function:	√
Operating Condition Display:	√
Operating Condition:	0C ~40C
