Color Matching Cabinet Importer and supplier in Bangladesh. Color Matching Cabinet is used to test color for Color Matching. Color Matching Cabinet is a Textile Lab Machinery.

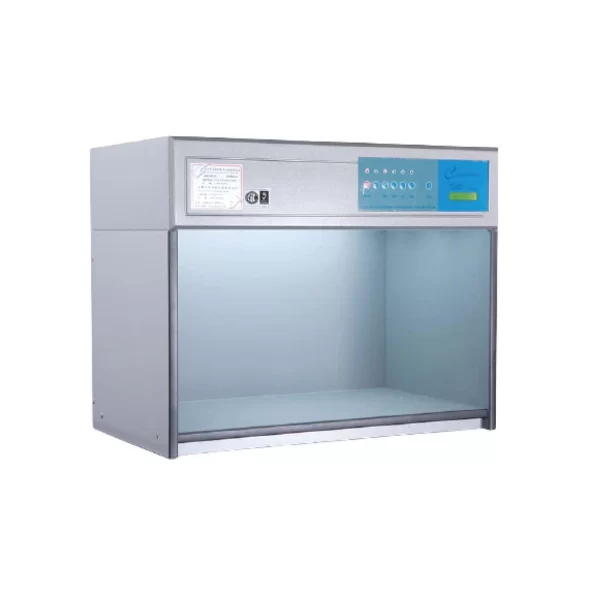

TILO 2 Feet 5 Option Light Box Cabinet (P60-5) is equipped with 5 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting. TILO 2 Feet 5 Option Light Box Cabinet (P60-5) can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
FEATURES OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
- Certified by ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Automatic changeable into another light source by switching.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch, easy to operate each light source.
- No warm-up time, just plug and play.
- The energy-saving device which generates lower heat & high efficiency.
- The name of the light source can be changed.
SPECIFICATION OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
| Name |
Details |
| Model |
P60(5) |
| Brand |
TILO |
| Origin |
Hong Kong |
| Weight |
23Kg |
| Dimensions (WxDxH) |
(710 x 405 x 570)mm |
| Standards |
ASTM D1729, ISO3664, DIN, ANSI and BSI |
| Light source |
Five light source. |
| Power Source |
Electric. |
| Voltage |
220 ~ 240V |
| Body Material |
Fiber-reinforce |
| Warranty |
One year free service |
LIGHT SOURCE OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
| Light Source |
Color viewing applications / Uses of Light |
Color Temp. (K) |
Power (W) |
Brand Info |
Quantity |
| D65 |
International standard Artificial Daylight / Natural Daylight |
6500 |
18 |
PHILIPS; TL-D/18-965 |
2 Pieces |
| TL84 |
Applied to stores in Europe, Japan and China |
4000 |
18 |
PHILIPS; TL-D/18-840 |
2 Pieces |
| F |
“Sun-setting Light Yellow” incandescent light source |
2700 |
40 |
PHILIPS |
4 Pieces |
| UV |
ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments |
Wave length: 365nm |
20 |
PHILIPS 18W BLB |
1 Pieces |
| CWF |
(Cool White Fluorescent) American Standard |
4150 |
18 |
PHILIPS; TL-D/18-640 |
2 Pieces |
PACKING INFORMATION OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
VIDEO REVIEW OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
