Color Matching Cabinet Importer and supplier in Bangladesh. Color Matching Cabinet is used to test color for Color Matching. Color Matching Cabinet is a Textile Lab Machinery.

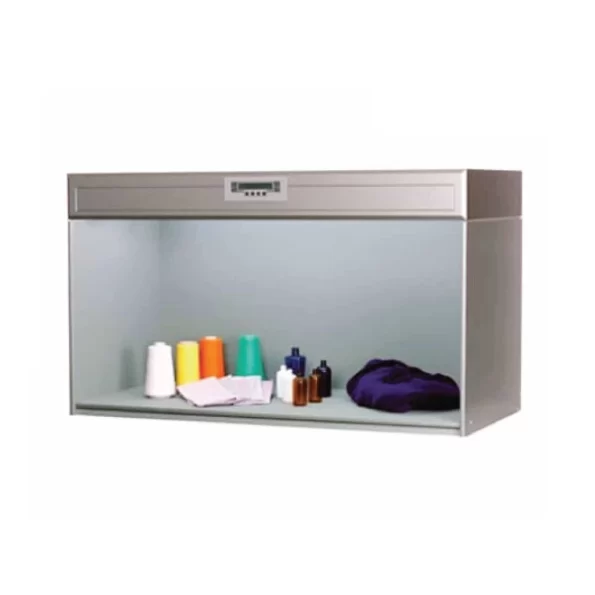

VeriVide 4 Feet 5 Option Light Box Cabinet (CAC-120-5) is conversant to many people working in garments, textile, plastic and other industries. it is used to test color for Color Matching.VeriVide 4 Feet 5 Option Light Box Cabinet (CAC-120-5) widely used in the garments, textile, plastic and other industries. that is offers a standardized visual evaluation of color. it is used for the determination of the color fastness in the garments, textile, plastic and other industries. The Color fastness is determined by an electronic crock meter machine which is a projected and highly coveted machine in the textile market. For this reason, VeriVide 4 Feet 5 Option Light Box Cabinet (CAC-120-5) play an important role in garments, textile, plastic and other industries.
FEATURES OF VERIVIDE 4 FEET 5 OPTION LIGHT BOX CABINET (CAC-120-5)
- Five option Light source Color Light Box.
- Color Light Box Full body made Fiber-reinforce.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch easy to operate each light source.
- The energy-saving device which generates lower heat & high efficiency.
- Automatic changeable into another light source (F, UV, D65, TL84, CWF) by switching.
- We provide One year of free service warranty.
SPECIFICATION OF VERIVIDE 4 FEET 5 OPTION LIGHT BOX CABINET (CAC-120-5)
| Name |
Details |
| Model |
CAC-120-5 |
| Brand |
VeriVide |
| origin |
UK |
| Weight |
23Kg |
| Dimensions (WxDxH) |
(1920 x 755 x 620)mm |
| Viewing Area (WxDxH) |
(1260 x 570 x 585)mm |
| Lightsource |
Five light source. |
| Power Source |
Electric. |
| Voltage |
220 ~ 240V |
| Body Material |
Fiber-reinforce |
| Warranty |
One year free service |
LIGHT SOURCE OF VERIVIDE COLOR LIGHT BOX | COLOR MATCHING CABINET (CAC-120-5)
| Light Source |
Color viewing applications / Uses of Light |
Color Temp. (K) |
Power (W) |
Quantity |
| D65 |
International standard Artificial Daylight / Natural Daylight |
6500 |
18 |
2 Pieces |
| TL84 |
Applied to stores in Europe, Japan and China |
4000 |
18 |
2 Pieces |
| F |
“Sun-setting Light Yellow” incandescent light source |
2700 |
40 |
4 Pieces |
| UV |
ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments |
Wave length: 365nm |
20 |
1 Pieces |
| CWF |
(Cool White Fluorescent) American Standard |
4150 |
18 |
2 Pieces |
PACKING INFORMATION OF VERIVIDE 4 FEET 5 OPTION LIGHT BOX CABINET (CAC-120-5)
VIDEO REVIEW OF VERIVIDE 4 FEET 5 OPTION LIGHT BOX CABINET (CAC-120-5)

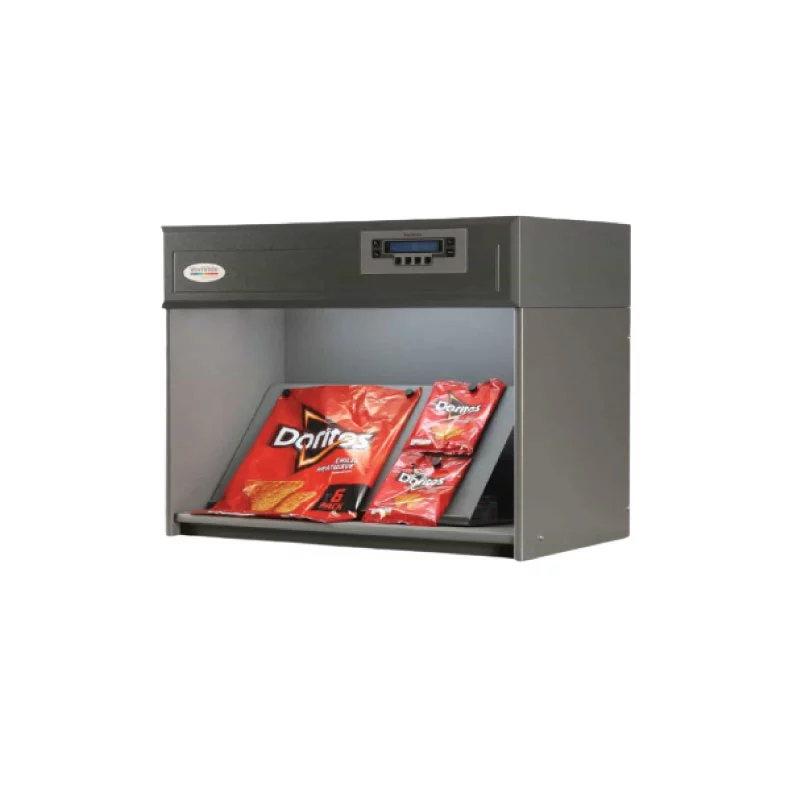

ALL MODEL OF VERIVIDE COLOR LIGHT BOOTH | COLOR MATCHING CABINET | COLOR LIGHT BOX
| Model |
CAC-60-4 |
CAC-60-5 |
CAC-120-4 |
CAC-120-5 |
| Overall Size |
(710 x 545 x 420)mm |
(710 x 545 x 540)mm |
(1920 x 755 x 620)mm |
(1920 x 755 x 620)mm |
| Viewing Area |
(680 x 360 x 380)mm |
(680 x 360 x 495)mm |
(1260 x 570 x 585)mm |
(1260 x 570 x 585)mm |
| Light Source |
4 Lights (D65, TL84,F, UV) |
5 Lights (D65, TL84,F, UV, CWF) |
5 Lights (D65, TL84,F, UV) |
5 Lights (D65, TL84,F, UV, CWF) |
