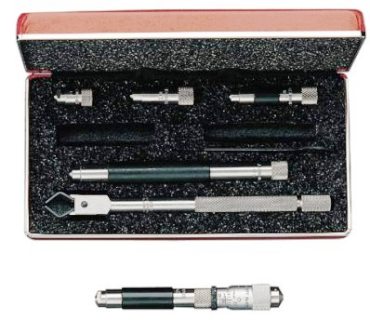

124AZ Starrett Inside Micrometer 2-8* Range, .001* Grad, 6 Rods, One 1/2* Head, Case

Name: 124AZ Starrett Inside Micrometer 2-8* Range, .001* Grad, 6 Rods, One 1/2* Head, Case
SKU: dusk19004
Availability: InStock

৳ 0.00

Description

124AZ

These are the most popular inside micrometers because of
their lightness, ease of use, and range. They are very useful for
measuring inside diameters of cylinders and rings, measuring
parallel surfaces, etc.
The desired range is obtained by assembling rods and spacing
collars to the micrometer head. Measuring rods are provided with a
shoulder that is set accurately in the micrometer head and locked
in position. When assembling rods to the A and B heads, the reading
line on the micrometer head should be lined up with the marking on
each rod (except for the 2-3″ and the 50-75mm rods).
Rod diameters are approximately 1/4″ (6mm) on the A and B
sizes, and approximately 11/32″ (8.5mm) on the C size. Each rod
has individual length adjustment for the anvil by means of special
wrenches furnished.

Measuring rods are solid and assembled on one side of the
micrometer head
Insulated rods marked with length
Hardened and ground anvils on rods, adjustable for length.
Head anvil is hardened and ground
Quick-reading ﬁgures – every thousandth numbered on inch
reading tools
A 6-1/2″ (165mm) long convenient handle is available to
provide reach for use in deep holes. Handle screws into the
micrometer head in place of the dummy screw, which is
opposite a rod lock screw

124 Solid -Rod Inside Micrometer Sets (.001″ Graduation)
Catalog No.	Range	Screw Movement	Measuring Rods	Spacing Collars
124AZ	2-8″	1/2″	6	One 1/2″
124BZ	2-12″	1/2″	10	One 1/2″
124CZ	8-32″	1″	4	One 1″ Two 2″
124DZ	2-32″	1/2 and 1″ (2 Heads)	Set 124A & 124C
124M Solid -Rod Inside Micrometer Sets (0.01mm Graduation)
124MAZ	50-200mm	13mm	6	One 12mm
124MBZ	50-300mm	13mm	10	One 12mm
124MCZ	200-800mm	25mm	4	One 25mm Two 50mm
124MDZ	50-800mm	13 & 25mm (2 Heads)	Comprised of Sets 124MA and 124MC
