Starrett Screw Pitch Gage
6-60 TPI Range

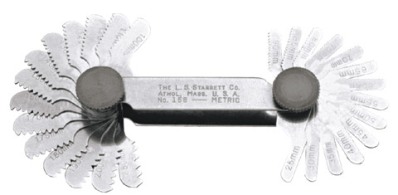

| Starrett screw pitch gages are among the most useful tools in any mechanics’ tool box. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. V, Unified, American National 60º threads Whitworth Standard 55º threads International Metric Standard 60º threads |
English and metric threads are similar in form, but English threads are described in threads per inch and metric threads by the distance from one crest to the next. All Starrett screw pitch gages (except 473 and 476, which have a positive stop design) feature a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves on most gages have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads. Various types of Starrett screw pitch gages are illustrated on the following pages, with complete specifications. |
| Screw Pitch Gages | ||||
| Catalog No. | No. of Leaves | TPI Range | Threads per Inch (TPI) | Description |
|
155
|
27
|
2-1/4–28
|
2-1/4, 2-3/8, 2-1/2, 2-5/8, 2-3/4, 2-7/8, 3, 3-1/4, 3-1/2, 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 28 |
With Locking Device and 60º Center Gage |
|
484
|
28
|
3-1/2–36
|
3-1/2, 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36 |
With Locking Device |
|
6
|
30
|
4–42
|
4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 |
With Locking Device and 11-1/2 and 27 Pipe Thread Pitches |
|
474
|
28
|
4–80
|
4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 16, 18, 20, 24, 27, 28, 32, 36, 40, 44, 48, 56, 64, 72, 80 |
|
|
472
|
51
|
4–84
|
First Corner 17 Leaves: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18 Second Corner 17 Leaves: 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50 Third Corner 17 Leaves: 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84 |
|
|
473
|
30
|
6–60
|
6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 48, 50, 56, 60 |
With Positive Stop and 11-1/2 and 27 Pipe Thread Pitches |
|
476
|
30
|
3-1/2–60
|
3-1/2, 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 44, 48, 50, 60 |
With Positive Stop |
|
156M
|
28
|
0.25-2.50mm
|
0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1, 1.10, 1.20, 1.25, 1.30, 1.40, 1.50, 1.60, 1.70, 1.75, 1.80, 1.90, 2, 2.50 |
With Locking Device |
|
159M
|
28
|
0.5-11.5mm
|
0.5, 0.75, 1, 1.10, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5 |
With Locking Device and 60º Center Gage |
