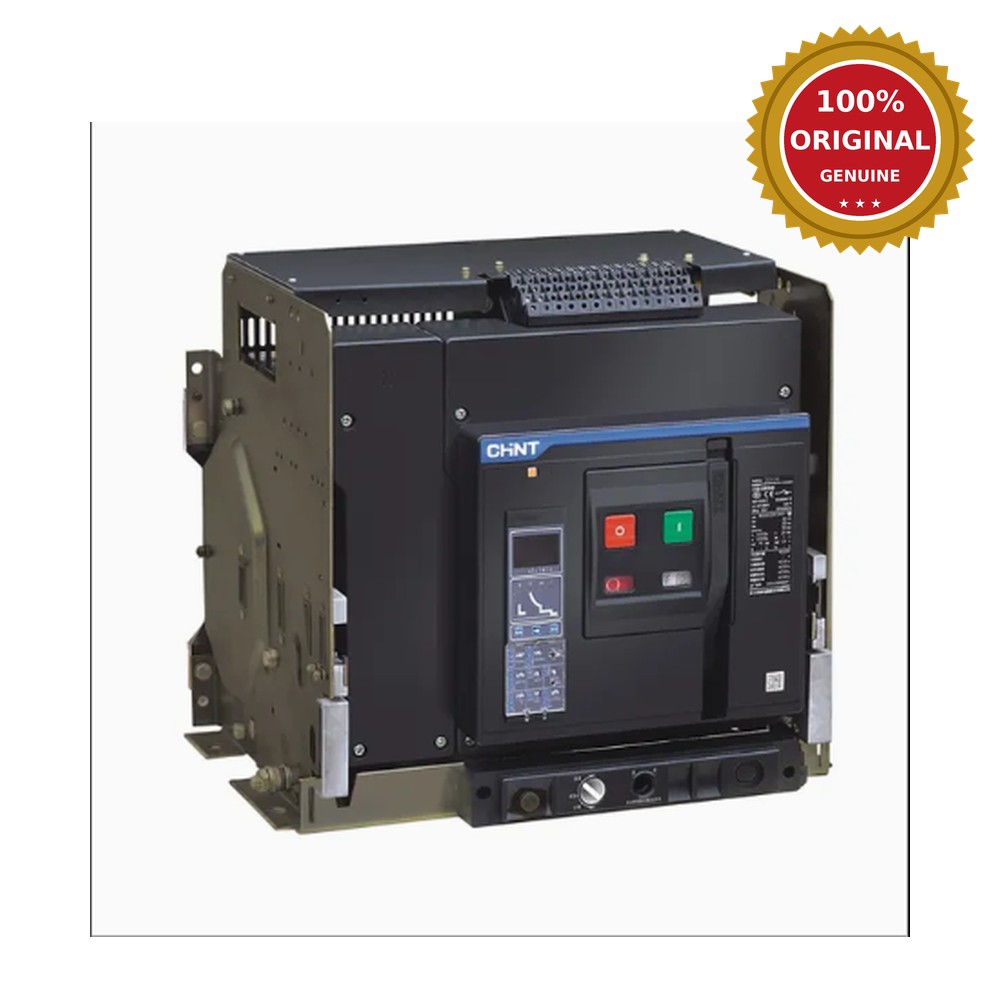

CHINT NXA Air Circuit Breaker (ACB), Fixed Type
CHINT NXA Air Circuit Breaker (ACB), Fixed Type: a air circuit breaker for main incomers and large feeders in LT panels.
- 10 options available, select yours above
- High breaking capacity for main incomers
- Adjustable protection settings
- Control voltage AC 220/230/240V
- Suitable for LT main panels
- Genuine CHINT stock, nationwide delivery
Description
The CHINT NXA ACB is a air circuit breaker for main incomers and large feeders in LT panels. This listing covers the CHINT NXA Air Circuit Breaker (ACB), Fixed Type. Check the latest CHINT NXA ACB price in Bangladesh on this page and order genuine stock from Magnet Engineering.
CHINT NXA ACB specifications
| Brand | CHINT |
|---|---|
| Product | CHINT NXA Air Circuit Breaker (ACB), Fixed Type |
| Series | NXA |
| Mounting | Fixed |
| Control voltage | AC 220/230/240V |
| Current range | 400A to 6300A |
| Type | Air Circuit Breakers (ACB) |
| Options available | 10 rating options |
| Price | MRP shown above (CHINT Bangladesh list, October 2026) |
Available ratings and part numbers
Select the option you need from the menu above. The table below shows the CHINT model / part number and MRP for each option, so you can match it to your drawing or BOQ.
| Rating | Model / part number | MRP (BDT) |
|---|---|---|
| 3P, 400-1000A, 50 kA | G NXA16N10-MF3-AC220/230/240TP | 232,420 |
| 3P, 500-1250A, 50 kA | G NXA16N12-MF3-AC220/230/240TP | 232,420 |
| 3P, 640-1600A, 50 kA | G NXA16N16-MF3-AC220/230/240TP | 246,240 |
| 3P, 800-2000A, 80 kA | G NXA20N20-MF3-AC220/230/240TP | 307,800 |
| 3P, 1000-2500A, 80 kA | G NXA32N25-MF3-AC220/230/240TP | 404,540 |
| 3P, 1600-3200A, 80 kA | G NXA32N32-MF3-AC220/230/240TP | 443,490 |
| 3P, 3200-4000A, 80 kA | G NXA40N40-MF3-AC220/230/240TP | 554,790 |
| 3P, 2000-5000A, 120 kA | G NXA63H50-MF3-AC220/230/240TP | 1,221,160 |
| 3P, 2520-6300A, 120 kA | G NXA63H63-MF3-AC220/230/240TP | 1,371,920 |
| 4P, 800-2000A, 80 kA | G NXA20S20-MF4-AC220/230/240TP | 370,620 |
Where it is used
Use it as the main incomer, bus coupler or large feeder breaker in LT panels for factories, buildings, power plants and substations. See all items in our Air Circuit Breakers (ACB) range.
How to choose the right one
Pick the frame and rating from the transformer or generator full-load current, and check the breaking capacity against the fault level. Choose draw-out type where you need easy maintenance and isolation, and fixed type for lower cost.
Why buy from Magnet Engineering
Since 2018, Magnet Engineering has supplied electrical and mechanical items to the power sector and industry in Bangladesh. Every CHINT item we sell is original stock. We offer nationwide delivery, cash on delivery and project pricing on request. Call +8801716603115.
