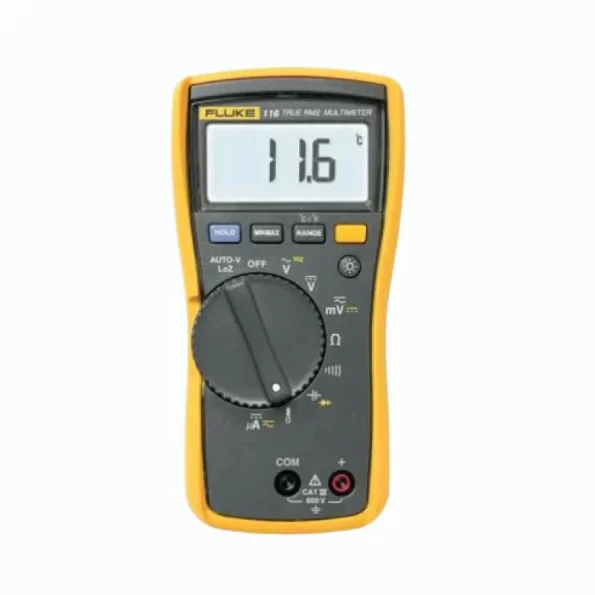

Fluke 116 Digital HVAC Multimeter (116)

Operating temperature -10°C to 50°C.
Storage temperature -40°C to 60°C.
Battery type 9 volt Alkaline, IEC 6LR61.
Battery life 400 hours typical, without backlight.

The Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas. Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.

FEATURES OF 116 DIGITAL HVAC MULTIMETER (116)

Measures resistance, continuity, frequency, and capacitance.
Provides Min/Max/Average to record signal fluctuations.
Comes with a holster with probe holders for easy storage.
Features a compact ergonomic design for one-handed operation.
Fits into optional ToolPak™ magnetic hanger for hands-free operation.

SPECIFICATION OF 116 DIGITAL HVAC MULTIMETER (116)

Name	Details
Model	116
Brand	Fluke
Origin	Japan
Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2IEC 61010-2-033: CAT III 600V
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to 50°C
Storage temperature	-40°C to 60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] [counts]): 0.5% 2
DC volts	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] [counts]): 0.5% 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% 3 (DC, 45 Hz to 500 Hz)4.0% 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% 3 (DC, 45 Hz to 500 Hz)2.0% 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% 3 (DC, 45 Hz to 500 Hz)2.0% 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% 1
	Range/Resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% 2
Diode Test	Range/resolution	2.00 V / 0.001 V
Diode Test	Accuracy	0.9% 2
Capacitance	Range/resolution	1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF / 1 μF100 μF to 1000 μF
	Accuracy	1.9% 2
	Range/resolution	> 1000 μF
	Accuracy	5% 20%
Lo-Z Capacitance	Range	1 nF to 500 μF
Lo-Z Capacitance	Accuracy	10% 2 typical
Temperature²(Type-K thermocouple)	Range/resolution	-40°C to 400°C / 0.1°C
	Accuracy	1% 10²
	Range/resolution	-40°F to 752°F / 0.2°F
	Accuracy	1% 18²
AC μA true-rms (45 Hz to 500 Hz)	Range/resolution	600.0 μA / 0.1 μA
AC μA true-rms (45 Hz to 500 Hz)	Accuracy	1.5% 3
DC μamps	Range/resolution	600.0 μA / 0.1 μA
DC μamps	Accuracy	1.0% 2
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz999.9 Hz / 0.1 Hz9.999 kHz / 0.001 Hz50.00 kHz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
