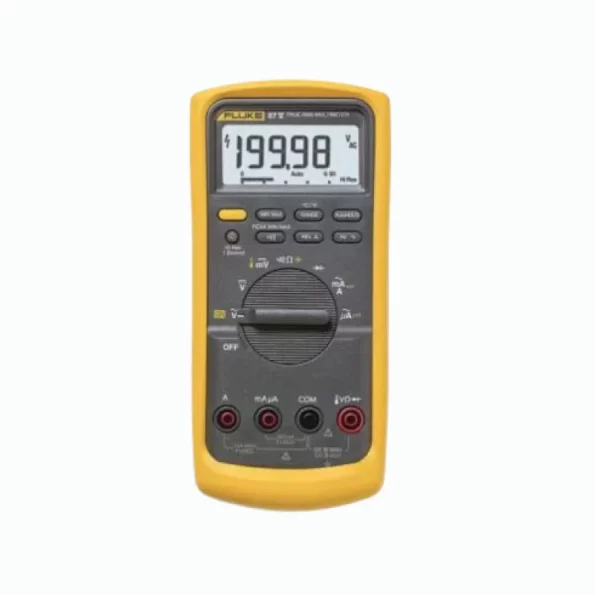

Fluke 87V Industrial Multimeter (87V)

Operating temperature –20 °C to 55 °C.
Storage temperature –40 °C to 60 °C.
Humidity (without condensation) 0% – 90% (0 °C – 35 °C).
Operating Altitude 2000 m.

The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment – even in loud, high-energy, and high-altitude locations. The 87V is designed so you can work more efficiently.

Easy-access door for fast battery changes without breaking the calibration seal
Analog bar graph for fast changing or unstable signals
Large digit display with bright, two-level backlight for easier reading in low light
Touch Hold keeps readings on display even after removing probes

The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittents as fast as 250 µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.

FEATURES OF 87V INDUSTRIAL MULTIMETER (87V)

Identify complex signal problems fast.
Supports accurate measurements on VFDs using a low-pass filter.
Captures intermittents as fast as 250 µS with Peak Capture.

SPECIFICATION OF 87V INDUSTRIAL MULTIMETER (87V)

Name	Details
Model	87V
Brand	Fluke
Origin	Japan
Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz 0.1%)
	Maximum resolution	0.1%
Temperature measurement	–200.0 °C – 1090 °C–328.0 °F – 1994.0 °Fexcluding probe
80 BK temperature probe	–40.0 °C – 260 °C–40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz 0.1%)
Environmental Specifications
Operating temperature	–20 °C to 55 °C
Storage temperature	–40 °C to 60 °C
Humidity (without condensation)	0% – 90% (0 °C – 35 °C)0% – 70% (35 °C – 55 °C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CE, CSA, RCM
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g624 g – with holster
Display	Digital	6000 counts updates 4/sec.19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
