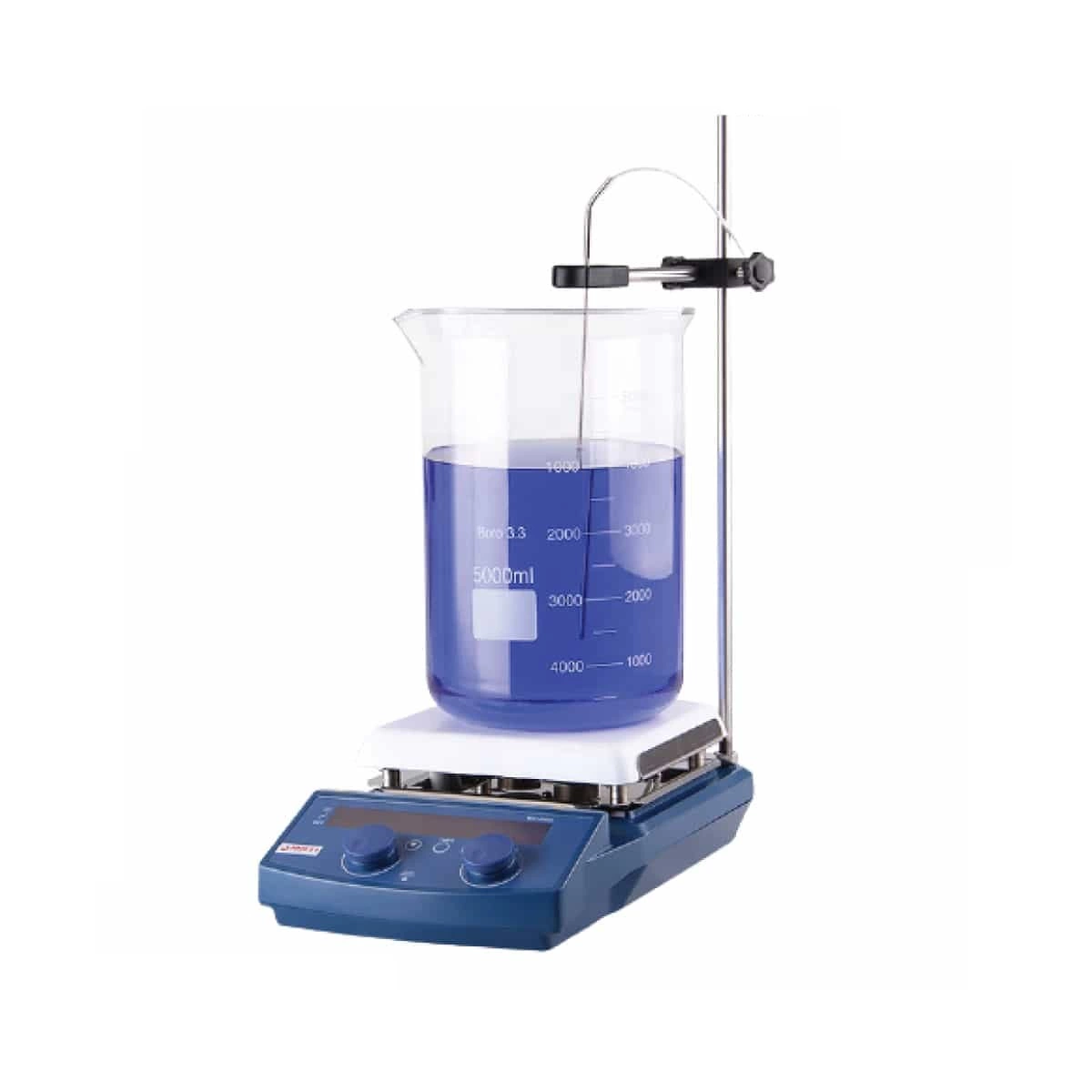

FOUR E’S Magnetic Stirrer Hotplate (MI0102005)

Temperature up to 510℃.
Safety temperature is 50-510℃.
Has timer whose time range is 0-99h59min.
PT1000 external temperature sensor is available.

FOUR E’S Magnetic Stirrer Hotplate (MI0102005) is important equipment of the laboratory. It is widely used in laboratories and consists of a rotating magnet or a stationary electromagnet that creates a rotating magnetic field. FOUR E’S Magnetic Stirrer Hotplate (MI0102005) is an electromechanical device. FOUR E’S Magnetic Stirrer Hotplate (MI0102005) is widely used in Liquid chemical, physical and chemical analysis, bio-pharmaceuticals and other fields. it is scientific has a full line of stirrer, hotplate stirrer available for different scientific research applications and they are built for functionality, safety and durability.

FEATURES OF FOUR E’S MAGNETIC STIRRER HOTPLATE (MI0102005)

High precision of±1.
Fixed safety circuit of 510 ℃.
3D digital error code display.
Hot surface warning to prevent burns.
Temperature/speed adjustment by digital wheels.
LED digital display for easy setting and reading.
SS304 rock available can be attached to the equipment.
Powerful motor for stirring quantities of up to 10L (H2o).
enclosed heating plate design lowers the risk of splashed liquid do into the equipment.
digital process timer allows for unsupervised operation and can be set from 1 min to 99h59min.
High-grade glass ceramics heating plates offer excellent chemical resistance and thermal-shock capability.

SPECIFICATION OF FOUR E’S MAGNETIC STIRRER HOTPLATE (MI0102005)

Name	Details
Model	MI0102005
Brand	FOUR E’S
Origin	China
Stirring position	1
Set-up plate dimensions [mm]	*185185**
Set-up plate material	Stainless steel with ceramic coated
Motor Type	Brushless DC Motor
Max. stirring quantity (H2O) [L]	20
Max. stirring bar [L x Φ, mm]	*80Φ9.5**
Motor rating input [W]	25
Motor rating output [W]	17
Speed range [rpm]	50-1500
Speed Display	LED
Heating output [W]	1000
Heating temperature range [°C]	Room temp.- 510
Temperature Display	LED
Temperature display accuracy [°C]	±0.1
Safety temperature [°C]	50-580
External temperature sensor	PT1000
Control accuracy with external temperature sensor PT1000 [°C]	±1
Control accuracy with internal temperature sensor PT1000 [°C]	±1(<100°C), 1%(≥100°C)
Hot surface warning	50°C
Time display	LED
Time range	0-99h59m
Dimensions [W x D x H, mm]	220 x 350 x 100
Protection class according to DIN EN60529	IP42
Permissible ambient temperature [°C]	5-40
Permissible relative humidity	80%
Voltage [VAC]	200-240/100-120
Frequency [Hz]	50/60
Power[W]	1050
