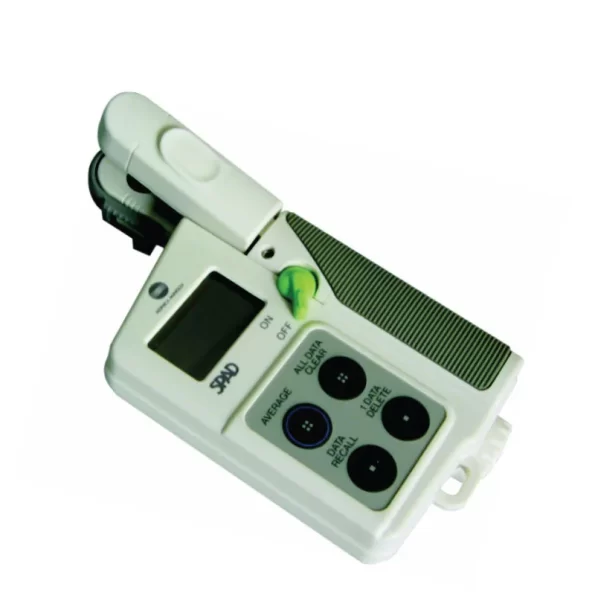

KONICA MINOLTA Chlorophyll Meter (SPAD-502Plus)
- Accuracy Within ±1.0 SPAD units .
- Repeatability Within ±0.3 SPAD units.
- Display LCD panel showing 4-digit measurement value .
- Display range -9.9 to 199.9 SPAD units.

KONICA MINOLTA Chlorophyll Meter (SPAD-502Plus)
Request a Call Back
- Ask a Question

KONICA MINOLTA Chlorophyll Meter (SPAD-502Plus)
Ask a Question
The SPAD-502Plus enables quick, easy measurement of the chlorophyll content of plant leaves without damaging the leaf. Chlorophyll content is one indicator of plant health, and can be used to optimize the timing and quantity of applying additional fertilizer to provide larger crop yields of higher quality with lower environmental load.
FEATURES OF MINOLTA CHLOROPHYLL METER (SPAD-502PLUS)
- Measurement method Optical density difference at two wavelengths.
- Measurement area 2 mm×3 mm.
- Subject thickness 1.2 mm maximum.
- Subject insertion depth 12 mm (with stopper having position adjustable from 0 to 6 mm).
- Light source 2 LED elements.
- Receptor 1 SPD (silicon photodiode).
- Display LCD panel showing 4-digit measurement value .
- Display range -9.9 to 199.9 SPAD units.
- Memory function Memory capacity for up to 30 values; Calculation/display of average of data in memory also possible.
- Power source 2 AA-size alkaline batteries
- Battery life More than 20,000 measurements (when using new alkaline batteries under Konica Minolta test conditions).
- Minimum interval between measurements Approx. 2 seconds.
- Accuracy Within ±1.0 SPAD units
- Repeatability Within ±0.3 SPAD units
- (SPAD value between 0.0 and 50.0 with no change in sample position).
- Dimensions 78 (W) ×164 (H) ×49 (D) mm.
- Weight 200 g (excluding batteries).
SPECIFICATION OF MINOLTA CHLOROPHYLL METER (SPAD-502PLUS)
| Name | Details |
| Model | SPAD-502Plus |
| Brand | KONICA MINOLTA |
| Origin | Japan |
| Measurement method | Optical density difference at two wavelengths. |
| Measurement area | 2 mm×3 mm. |
| Subject thickness | 1.2 mm maximum. |
| Subject insertion depth | 12 mm (with stopper having position adjustable from 0 to 6 mm). |
| Light source | 2 LED elements. |
| Receptor | 1 SPD (silicon photodiode). |
| Display | LCD panel showing 4-digit measurement value (values shown to first decimal place) and 2-digit number of measurements; Trend graph of values in memory can also be shown. |
| Display range | -9.9 to 199.9 SPAD units. |
| Memory function | Memory capacity for up to 30 values; Calculation/display of average of data in memory also possible. |
| Power source | 2 AA-size alkaline batteries |
| Battery life | More than 20,000 measurements (when using new alkaline batteries under Konica Minolta test conditions). |
| Minimum interval between measurements | Approx. 2 seconds. |
| Accuracy | Within ±1.0 SPAD units (for SPAD value between 0.0 and 50.0 under normal temperature/humidity)“*” added to display when measurement exceeds 50.0 SPAD units. |
| Repeatability | Within ±0.3 SPAD units(SPAD value between 0.0 and 50.0 with no change in sample position). |
| Dimensions | 78 (W) ×164 (H) ×49 (D) mm. |
| Weight | 200 g (excluding batteries). |
