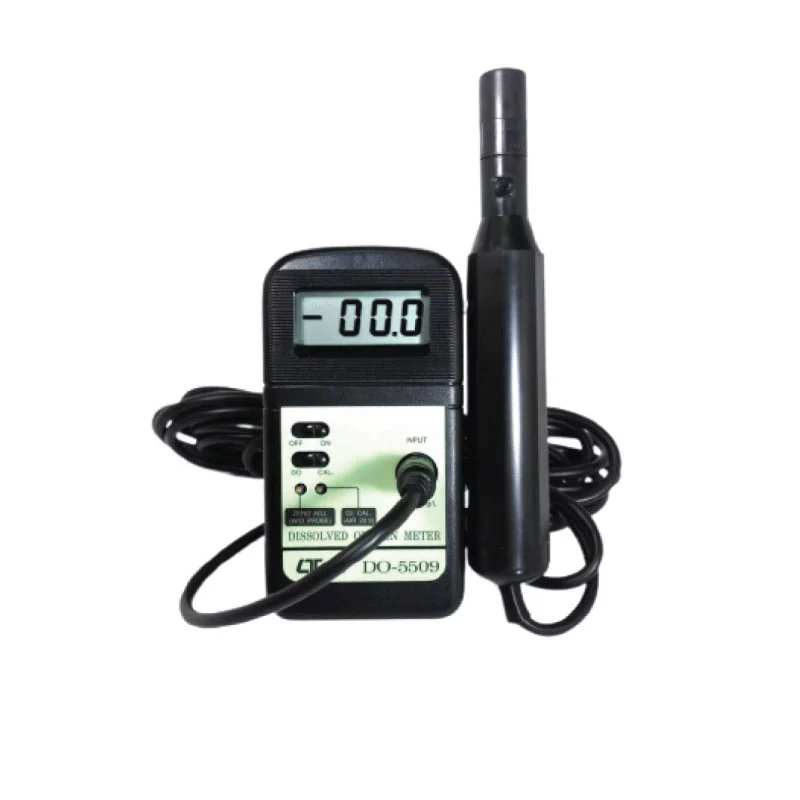

Lutron Dissolved Oxygen Meter (DO-5509)
- Accuracy ± 0.4 mg/L. (after calibration within 23± 5 ℃).
- Measurement Range Dissolved Oxygen – 0 to 20.0 mg/L.
- Compensation Automatic from 0 to 40℃.
- Operating Temp. 0 ℃ to 50 ℃(32 ℉ to 122 ℉).

Lutron Dissolved Oxygen Meter (DO-5509)
Request a Call Back
- Ask a Question

Lutron Dissolved Oxygen Meter (DO-5509)
Ask a Question
DO-5509 Dissolved Oxygen Meter is the best device to determine the oxygen into the targeted water base. By using sensors of the electrochemical, polarographic, amperometric, galvanic, or optical to measure the amount of gaseous oxygen dissolved in a water sample. It is important to test the DO Level of drinking water, aquarium, medical research, agriculture, fish hatcheries, laboratory, water conditioning, mining industry, schools & colleges, quality control.Lutron DO-5509 Digital Dissolved Oxygen Meter will supply with all kinds of standard accessories such as Calibration Electrolyte, Scroo Driver, Cable With Probe, Battery, User Manual, Calibration Certificate, & The Main Unite of DO Meter.This Digital Dissolved Oxygen Meter is supplied with a polarographic type probe with an incorporated Temp. sensor which serves for precise Dissolved Oxygen ( DO ) and Temp. measurement. Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control.
FEATURES OF DISSOLVED OXYGEN METER (DO-5509)
- Display 13 mm ( 0.5″ ) LCD, 3 1/2 digits.
- Measurement Range Dissolved Oxygen – 0 to 20.0 mg/L.
- Resolution 0.1 mg/L.
- Accuracy ± 0.4 mg/L. (after calibration within 23± 5 ℃).
- Sensor Temp.
- Compensation Automatic from 0 to 40℃.
- Panel adj. knob ZERO knob, CAL knob.
- Battery 006P DC 9V battery ( heavy duty ).
- Power Consumption Approx. DC 3.5 mA.
- Operating Temp. 0 ℃ to 50 ℃(32 ℉ to 122 ℉).
- Operating Humidity Less than 80% RH.
SPECIFICATION OF DISSOLVED OXYGEN METER (DO-5509)
| Name | Details |
| Model | DO-5509 |
| Brand | Lutron |
| Origin | Taiwan |
| Display | 13 mm ( 0.5″ ) LCD, 3 1/2 digits. |
| Measurement Range | Dissolved Oxygen – 0 to 20.0 mg/L. |
| Resolution | 0.1 mg/L.. |
| Accuracy | ± 0.4 mg/L. (after calibration within 23± 5 ℃) |
| Sensor Temp.Compensation | Automatic from 0 to 40℃. |
| Panel adj. knob | ZERO knob, CAL knob. |
| Battery | 006P DC 9V battery ( heavy duty ). |
| Power Consumption | Approx. DC 3.5 mA. |
| Operating Temp. | 0 ℃ to 50 ℃(32 ℉ to 122 ℉). |
| Operating Humidity | Less than 80% RH. |
| Dimension | Main instrument :131 x 70 x 25 mm ( 5.2 x 2.8 x 1.0 inch ).Oxygen probe :190 mm x 28 mm Dia. ( 7.5″ x 1.1″ Dia. ) |
| Weight | 390 g ( 0.86 LB ) – with probe. |
| AccessoriesIncluded | Oxygen probe( OXPB-09N )……………………………1 PC.Operation manual………………………………………1 PC.Spare Probe head with Diaphragm set,OXHD-04……………………………………………………2 PCs.Probe-filling Electrolyte,OXEL-03………………………………………………… 1 PC. |
| OptionalAccessories | *Oxygen probe…………………………………… OXPB-09N* Spare Probe head with Diaphragm set…OXHD-04* Probe-filling Electrolyte………………………. OXEL-03* Hard carrying case………………………………CA-06 |
