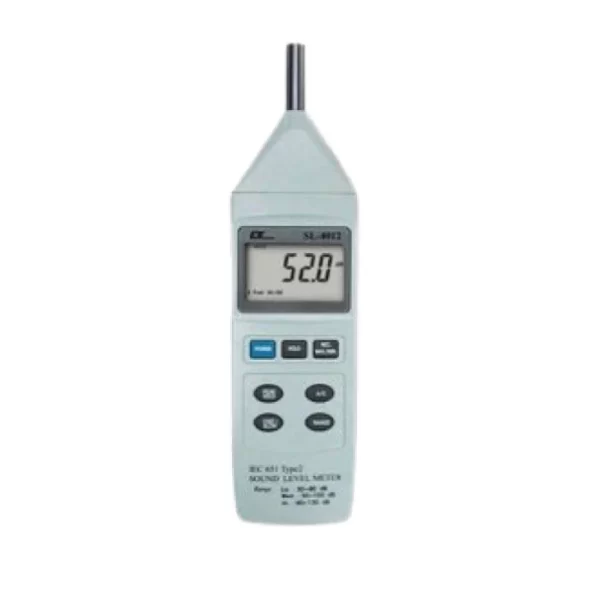

Lutron Sound Level Meter (SL-4012)
- Resolution 0,1 dB.
- Frequency 31.5 to 8,000 Hz.
- Accuracy (23 ± 5˚C).
- Measurement Range 30 – 130 dB.

Lutron Sound Level Meter (SL-4012)
Request a Call Back
- Ask a Question

Lutron Sound Level Meter (SL-4012)
Ask a Question
Sound Level Meter is an instrument that is designed to measure sound levels in a standardized way. It responds to sound in approximately the same way as the human ear and gives objective, reproducible measurements of sound pressure levels. Sound Level Meters are used to measure and manage noise from a variety of sources, including industrial plants, road and rail traffic, and construction work. Sound Level Meter comprises a microphone, a preamplifier, signal processing, and a display. Lutron Sound Level Meter (SL-4012) is Quality being the sole concern, we offer a wide range of Sound Meters that are known for their matchless attributes. Our entire product range is available in different specifications. We have an in-house quality auditing team that tests the entire product range on specified parameters, thereby ensuring its durability and reliability. Our entire product range is configured with advanced technologies.
FEATURES OF LUTRON SOUND LEVEL METER (SL-4012)
- Accurate Results Sound Level Meter.
- Flawless Performance Sound Level Meter.
- Technically advanced Sound Level Meter.
- Easy operate Sound Level Meter.
SPECIFICATION OF LUTRON SOUND LEVEL METER (SL-4012)
| Name | Details |
|---|---|
| Model | SL-4012 |
| Brand | Lutron |
| Origin | Taiwan |
| Measurement Range | 30 – 130 dB |
| Resolution | 0,1 dB |
| Frequency | 31.5 to 8,000 Hz |
| Accuracy | (23 ± 5˚C) |
| Display | 52 mm x 32 mm LCD 5 digits (Liquid Crystal Display) |
| Calibrator | B & K (Bruel & Kjaer), Multi-Fuction Acoustic Calibrator |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | < 80% RH; |
| Power Supply | 006P DC 9V battery ( Alkaline or heavy duty type ), Power |
| Consumption | Approx. DC 6mA |
| Output Signal | AC output – AC 0.5 Vrms corresponding to each range step, Output impedance – 600 ohm, RS232 |
| Output Terminal | Terminal 1 : RS232 computer interface terminal, Terminal 2 : AC output terminal |
| Range Selector | Auto Range 30 to 130 dB |
| Manual Range | 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over & under range indicating |
| Terminal Socket Size | 3.5 mm dia. phone socket |
| Function | dB (A & C frequency weighting), Time weighting (Fast, Slow), Hold, Memory (Max. & Min.), Max. hold, AC output, RS232 output |
| Microphone Type | Electric Condenser Microphone |
| Microphone Size | Out size, 12.7 mm DIA. (0.5 inch) |
| Weighting Network | Characteristics of A & C |
| Weighting Network | Characteristics of A & C |
| Time weighting (Fast & Slow) | Fast: t=200 ms, Slow: t=500 ms |
| Time weighting (Fast & Slow) | Fast: t=200 ms, Slow: t=500 ms “Fast” range is simulated the human ear response time “Slow” range is easy to get the avg. values of vibration sound levelThe “Fast” & “Slow” response range are designed to meet IEC 651 type 2 requirement |
| Calibration VR | Build in external calibration VR, easy to calibrate on 94 dB level by screw driver |
| Power Consumption | approx. DC 6 mA |
| Dimension | 268 x 68 x 29 mm (10,6 x 2,7 x 1,1 inch) |
| Weight | 285 gr. (0,63 lb), including battery |
| Accessory included | Instruction Manual |
