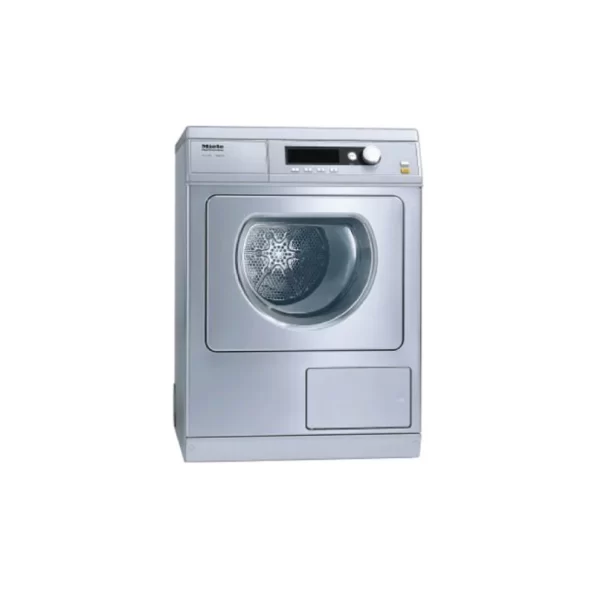

Miele 6.5kg Dryer (PT 7136)

Drum volume 130 l, load capacity 6.5 kg.
Large programmable variety.
Perfect drying of all fabrics .
Unique, gentle fabric care.

Description

Vented dryer, electrically heated with the shortest cycle of 41 minutes for a high throughput of laundry.

FEATURES OF MIELE 6.5KG DRYER (PT 7136)

Drum volume 130 l, load capacity 6.5 kg.
Large Programmer variety.
Perfect drying of all fabrics .
Unique, gentle fabric care.
Easy operation.

SPECIFICATION OF MIELE 6.5KG DRYER (PT 7136)

Construction type and version
Name	Details
Model	SG-HP-12.7
Brand	Touch-Y
Origin	China
Construction type	Front-loader, stackable
Range	Professional – Little Giants
Front	Lotos white
Load in kg	6.5
Load ratio	1:20
Drum volume in l	130
Drying system	Vented
Door opening [Ø] in mm	410
Door opening angle in degrees	167
Door hinge	left
Honeycomb drum	•
Application
Suitable for the hotel and catering industry	•
Suitable for retirement and care homes	•
Suitable for facility management	•
Suitable for launderettes	•
Suitable for residential homes and apartments	•
Suitable for dry cleaners	•
Suitable for commercial laundries	•
Suitable for small businesses	•
Suitable for universities, nurseries, and schools	•
Suitable for hospitals	•
Suitable for fast food restaurants	•
Suitable for camp sites	•
Suitable for sports clubs	•
Suitable for beauty salons, spas, and fitness centres	•
Suitable for domestic use	•
Suitable for doctors’ and dentists’ practices	•
Performance data
Maximum evaporation capacity in l/hour	2.7
Specific energy consumption in kWh/kg	0.50
Programme duration in min.	41
Controls
Control system	Profitronic L Vario
Programmability	programmable
User interface	Residual moisture controlled
Max. delay start in h	24
Time left display	•
Programme sequence indicator	•
Selectable display languages	•
Dimensions and weight
External dimensions, height in mm	850
External dimensions, width in mm	595
External dimensions, depth in mm	710
Net weight in kg	58
Maximum floor loading in N	660
Emissions data
Emissions – sound pressure at workplace	70 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h	0.76
Features
Intelligent drum reversal	•
Axial airflow	•
Large-surface filter	•
PerfectDry	•
SoftLift drum ribs	•
Low temperature function	•
Drying basket (optional)	•
Machine-independent accessories	•
Efficiency and sustainability
Recycling rate in %	95
Connection options
Payment system	•
Serial interface RS 232 (optional)	•
Optical interface for service access	•
Peak load cut-out/energy management (optional)	•
Test certificate
CE	•
VDE	•
VDE-EMC	•
Splash-proof safety rating IPX4	•
WEEE	•
Complies with Machinery Directive 2006/42/EC	•
Standard electrical connection
Heating type	Electrical
Electrical connection	220-230V~ 50HZ
Electric heater rating in kW	4,78-5,22
Total connected load in kW	5,03-5,47
Fuse rating in A	25
