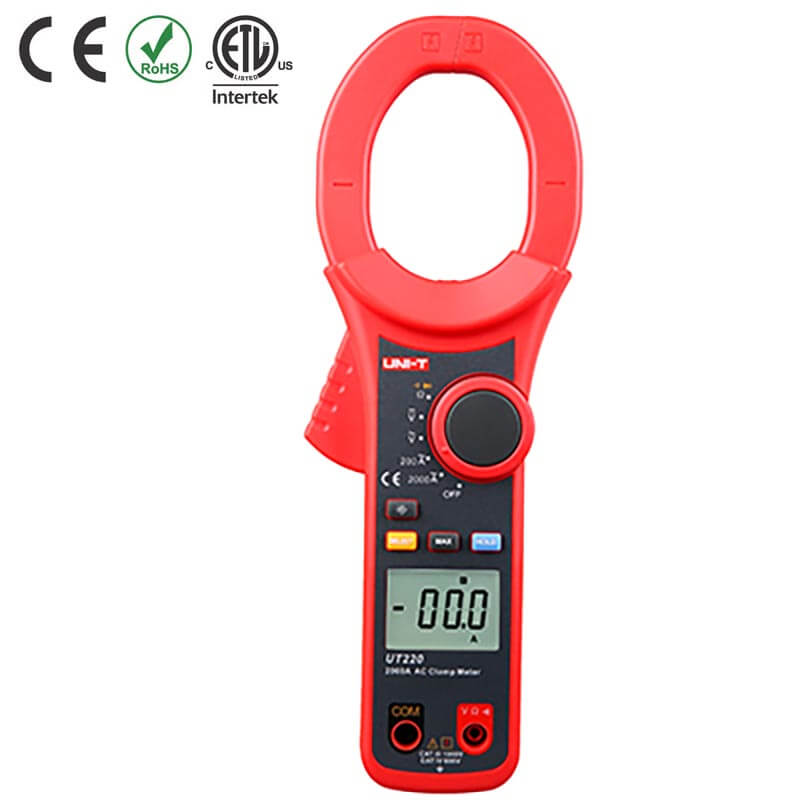

UT220 2000A Clamp Meter

Name: UT220 2000A Clamp Meter
SKU: dusk23452
Price: 7500.00 BDT
Availability: InStock

৳ 7,500.00

UT220 series is 2000A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with overload protection for all ranges, perfect for all professionals measuring currents up to 2000A (2500A for UT222).

Description

Specifications	Range	UT220	UT221	UT222
AC current (A)	2000A	±(2.5%+5)	±(2.5%+5)
AC current (A)	2500A			±(1.5%+5)
DC current (A)	2000A		±(2.5%+5)
DC current (A)	2500A			±(1.5%+5)
AC voltage (V)	750V	±(1.2%+5)	±(1.2%+5)
AC voltage (V)	1000V			±(1%+3)
DC voltage (V)	1000V	±(0.8%+1)	±(0.8%+1)	±(0.5%+2)
Resistance (Ω)	20MΩ	±(1%+2)
	60MΩ			±(1%+2)
	66MΩ		±(1%+2)
Capacitance (F)	60mF			±(3%+5)
Frequency (Hz)	20MHz		±(0.1%+3)
Frequency (Hz)	60MHz			±(0.1%+3)
Temperature	-40°C~1000°C			±(1%+10)
Temperature	-40°F~1832°F			±(1%+18)
Features
Display count		2000	6000	6000
Auto range/Diode		√	√	√
Jaw opening		63mm	63mm	63mm
True RMS (AC voltage/AC current)			√	√
Duty cycle	10%~90%		√	√
Continuity buzzer		√	√	√
AC+DC				√
Low pass filter			√	√
Inrush current	AC current		√	√
Relative mode			√	√
Data hold/MAX		√	√	√
MIN/I-OUT function			√	√
Data storage				1000
Analog bar graph			66	61
Full icon display		√	√	√
Low battery indication		√	√	√
Input impedance	≥10MΩ	√	√	√
General Characterisitics
Power	9V battery (6F22)
Display	43mm x 30mm
Product color	Red and grey
Product net weight	UT220: 389g; UT221/UT222: 726g
Product size	298mm x 107mm x 47mm
Standard accessories	Test leads, output cable (UT221/UT222), thermocouple (UT222)
Standard individual packing	Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual
Standard quantity per carton	UT220: 40pcs; UT221/UT222: 5pcs
Standard carton measurement	UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm
Standard carton gross weight	UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg
