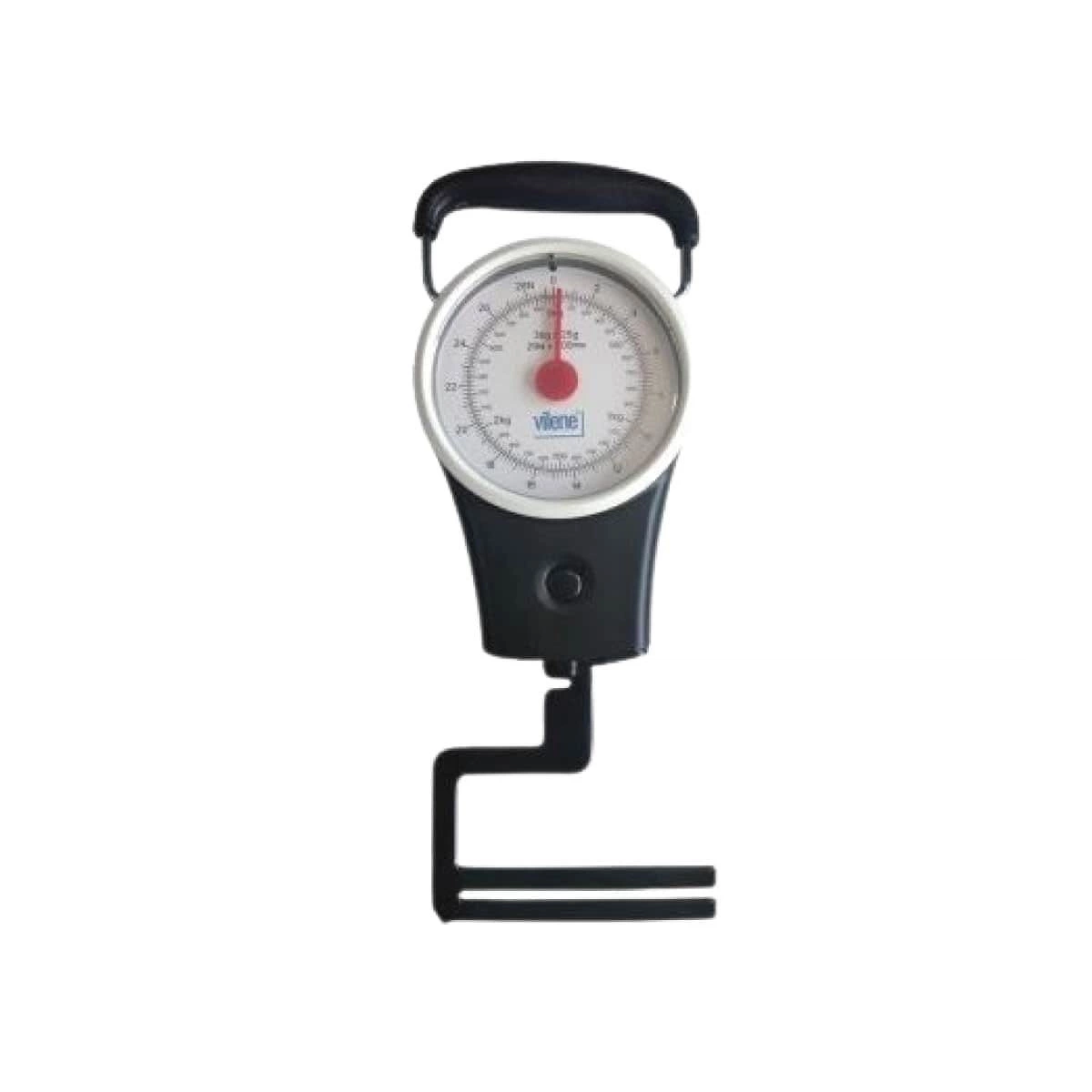

Vilene Fusing Bond Test Machine (Analog)
- Manual Fusing Bond Test Machine.
- Easy to operate Fusing Bond Test Machine.
- Performance of Heavy duty Fusing Bond Test Machine.
- Capacity of Fusing Bond Test Machine 0.5g to 3 kilogram.
Vilene Fusing Bond Test Machine (Analog) is used to check the sustainability of fabric in the garment and textile lab industry. The heat, pressure and time of the fabric can be checked using a Fusing Bond Test Machine. The Vilene Fusing Bond Test Machine (Analog) comes in multiple options of fixed or continuous fusing, size, pressure, heating, cooling systems and speed.
FEATURES OF VILENE FUSING BOND TEST MACHINE (ANALOG)
- Manual Fusing Bond Test Machine.
- Easy to operate Fusing Bond Test Machine.
- Performance of Heavy duty Fusing Bond Test Machine.
- Capacity of Fusing Bond Test Machine 0.5g to 3 kilogram.
SPECIFICATIONS OF VILENE FUSING BOND TEST MACHINE (ANALOG)
| Name | Details |
|---|---|
| Model | Analog |
| Brand | Vilene |
| Origin | Germany |
| Capacity | 3kg |
| Division | 5gram |
| Power | Analog |
| Measuring Tep | 40 Inch |
| ZERO & TARE Function | Yes |
| Display | Digital |
| Operation | Manual |
| Packaging | Standard Design Gift Box |
BOND STRENGTH REQUIREMENTS OF VILENE FUSING BOND TEST MACHINE (ANALOG)
| Application | Fused Area | Type of Interlining/Adhesive | Bond StrengthRequirement (N / newtons) |
|---|---|---|---|
| Women’sBlouses & Dresses | Small Parts | All Types | 2.5 N or higher |
| Women’s Jackets | Large Area, Full Fronts | All Types | 5.0 N or higher |
| Men’s Jackets | Large Area, Full Fronts | All Types | 10.0 N or higher |
| Woven Shirts – Formal | Collar, Cuff, Placket | HDPE adhesive | 10.0 N or higher |
| Woven Shirts – Casual | Collar, Cuff, Placket | PSE or PA adhesive | 5.0 N or higher |
| Childrenswear with Embroidery | OTB – Over the Back | Circular Knit | 5.0 N or higher |
FACTORS BOND STRENGTH OF VILENE FUSING BOND TEST MACHINE (ANALOG)
- Speed / Dwell Time / Wrong interlining selection.
- Fuselage temperature is too low.
- Poor or uneven pressure.
USE INSTRUCTIONS OF VILENE FUSING BOND TEST MACHINE (ANALOG)
- Increase the fusing /dwell time for the adhesive to achieve sufficient viscosity and penetrate into the fabric.
- Set the temperature slightly higher, but never too high since it may lead to over-fusing, resulting in lower bond strength.
- Ensure the pressure is properly working and that it is even across the width of the fusing press.
- Cooling time – Allow at least 30 minutes before the bond strength test is taken.
