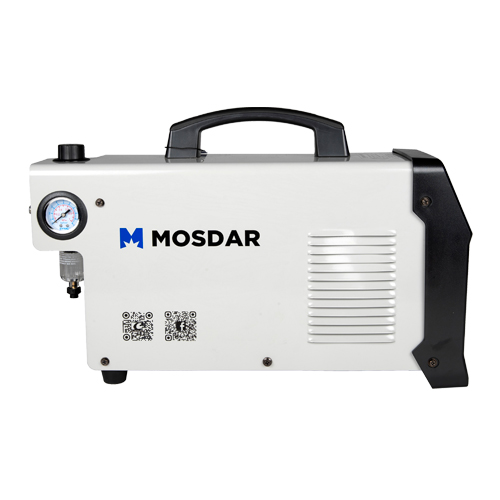

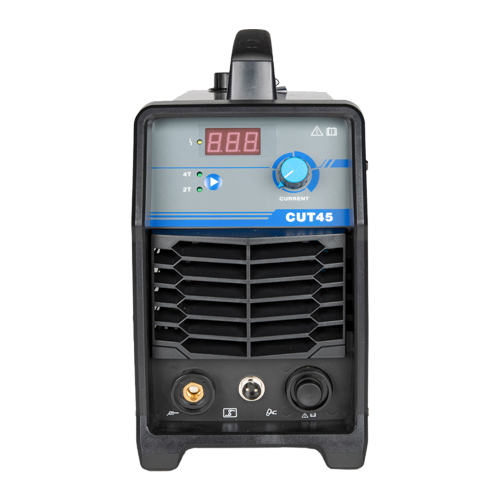

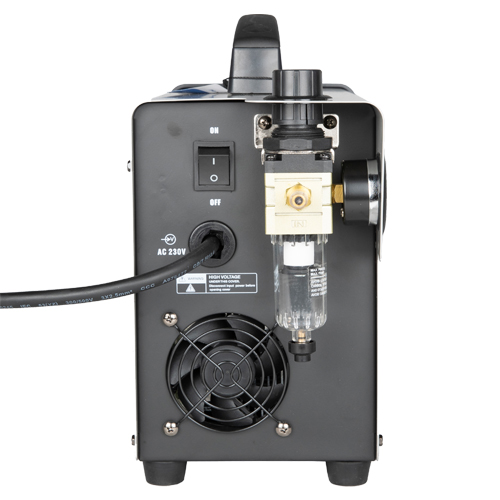

WELDING MACHINE PLASMA CUT 45 MOSDAR

৳ 19,290.00

- Suits 17 series Torches WP17 (SR-17)
- Flexible head
- Complete with ceramic insulator
- Head thread where the collet body screws into is 3/8 ” 32 UNF
- Base thread where the power lead screws into is 3/8 x 24 RH
- Model:WP-17F
- Product Code: P2871

Description

It can cut steel up to 12mm in thickness smoothly.
Advanced digital control mode.
Advanced inverter technology.
Good consistency and stable performance.
Powerful cutting performance.

Accessories

*5m 40A PT31 torch

*200A earth clamp+6mm²X2.5m cable+quick plug

*2 pcs hose clamp

*Helmet

*Brush

*Gloves

Specification

Main Feature
Brand	MOSDAR
Origin	CHINA
Model	CUT 45
Input power source	230V
Rated input power (KVA)	8.5
Rated input current (A/V)	45/98
Duty cycle (%) @40°C	30
No-load voltage (V)	300
Output current range (A)	20~45
Post-flow time (S)	10
Gas pressure range (MPa)	0.3~0.5
Arc ingition type	HF
Protection class	IP21S
Insulation class	H
Cooling mode	Air Cooling
Quality cutting thickness (mm)	12
Max cutting thickness (mm)	20
Power Factory (cosθ)	0.63
Efficiency (%)	84
Net weight (Kg)	6.8
