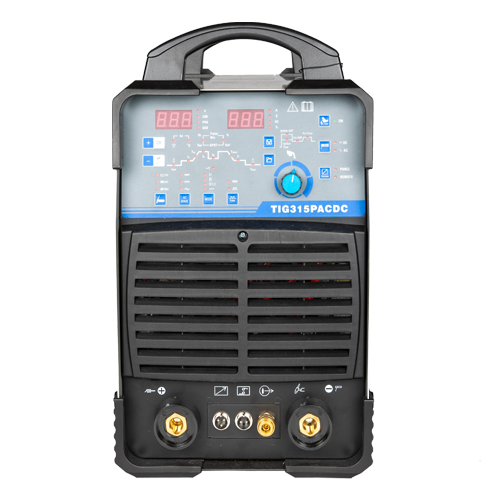

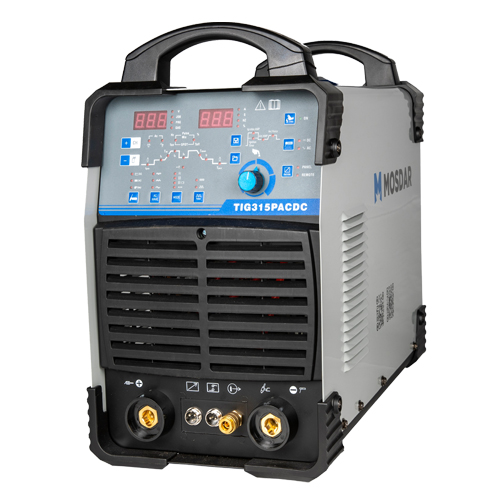

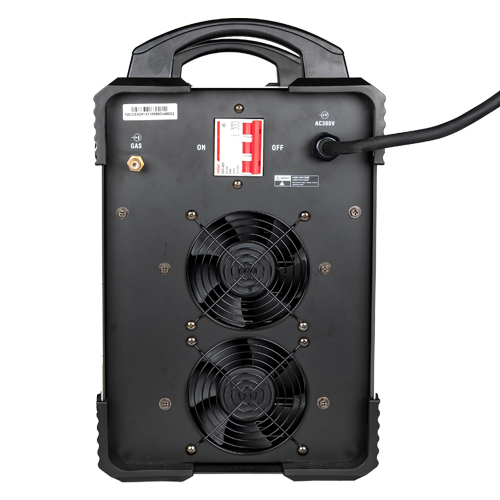

WELDING MACHINE TIG 315P ACDC MOSDAR
৳ 111,200.00
-
- Low thermal conductivity, low heat storage
- Good heat and chemical stability
- Thermal shock resistance
- Tensile strength
- Good thermal insulation
- Noise reduction
- Fireproof
- Model:CERAMIC FIBER
- Product Code: P2683
Description
Advanced IGBT inverter technology
It is widely used for welding all kinds of acids and basic electrodes
AC TIG welding is widely applied to weld with non-ferrous metals such as various aluminum alloys and magnesium alloys
DC TIG welding can be applied to weld with various stainless steels and carbon steels
Good product consistency and stable performance
Friendly human-machine interface
Perfect automatic recording
Accessories
*Torch: 5m WP-18
*500A earth clamp+35mm²X3m cable+quick plug
*500A electrode holder+35mm²X3m cable+quick plug
*Tungsten rod 2.4X150mm
*Helmet
*Brush
*TIG gloves
Specification
| Main Feature | ||
| Brand | MOSDAR | |
|---|---|---|
| Origin | CHINA | |
| Model | TIG 315PACDC | |
| Input power source | 380V | |
| Rated input power (KVA) | 9.0@TIG 10.0@MMA | |
| Rated input current (A) | 19.5@TIG 21.0@MMA | |
| Output current range (A) | TIG: 10~315 MMA: 10~270 | |
| Arc-force Current (A) | 0~100 | |
| Hot Start Current (A) | 0~80 | |
| Open circuit voltage (V) | 65 | |
| VRD voltage (V) | 12.5 | |
| Rated operating voltage (V) | TIG: 22.6 MMA: 30.8 | |
| AC output frequency (Hz) | 50~200 | |
| Balance (%) | 20~60 | |
| ACDC mixed output frequency (Hz) | 1.0~20 | |
| ACDC mixed duty cycle (DC,%) | 5~95 | |
| Base current (%) | 6~315 | |
| Pulse frequency (Hz) | DC: 0.5~200 AC: 0.5~20 | |
| Pulse duty cycle (%) | 5~95 | |
| Pre-flow time (S) | 0.5~10 | |
| Post-flow time (S) | 0.5~15 | |
| Upslope time (S) | 0~15 | |
| Downslope time (S) | 0~15 | |
| Hot start current time (S) | 0.01~1.5 | |
| Arc ignition type | HF ignition, contact ignition | |
| Duty cycle (%) @40°C | TIG: 315@30% MMA: 270@30% | |
| Protection class | IP21S | |
| Insulation class | F | |
| Power Factory (cosθ) | 0.7 | |
| Operating temperature (°C) | -10~40 | |
| Efficiency (%) | 80 | |
| Dimensions (mm) | 552X267X442 | |
| Net weight (Kg) | 26 | |
