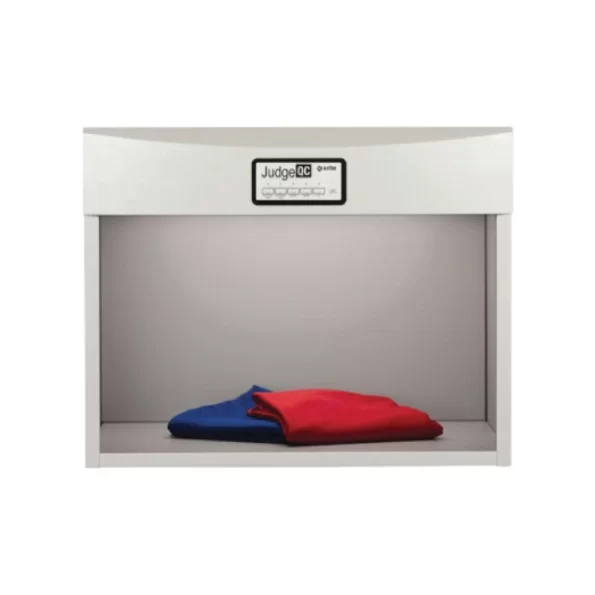

X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC)
- Size 2 Feet.
- Light source 5 option.
- Dimensions (WxDxH) (63.5 × 47 × 38) cm.
- Viewing Area (WxDxH) (53.5 x 68.5 x 54.5) cm.

X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC)
Request a Call Back
- Ask a Question

X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC)
Ask a Question
MACBETH Light Box Importer and supplier in Bangladesh. MACBETH Light Box is used to test color for Color Matching. MACBETH Light Box is a Textile Lab Machinery.
X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC) is conversant to many people working in garments, textile, plastic and other industries. it is used to test color for Color Matching. X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC) widely used in the garments, textile, plastic and other industries. that is offers a standardized visual evaluation of color. it is used for the determination of the color fastness in the garments, textile, plastic and other industries. The Color fastness is determined by an electronic crock meter machine which is a projected and highly coveted machine in the textile market. For this reason, X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge QC) play an important role in garments, textile, plastic and other industries.
FEATURES OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE QC)
- Five option Light source Color Light Box.
- Color Light Box Full body made Fiber-reinforce.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch easy to operate each light source.
- The energy-saving device which generates lower heat & high efficiency.
- Automatic changeable into another light source (F, UV, D65, TL84, CWF) by switching.
- We provide Two years of free service warranty.
SPECIFICATION OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE QC)
| Name | Details |
|---|---|
| Model | Judge QC |
| Brand | X-Rite |
| origin | USA |
| Weight | 31.5 kg |
| Dimensions (WxDxH) | (63.5 × 47 × 38) cm |
| Viewing Area (WxDxH) | (53.5 x 68.5 x 54.5) cm |
| Lightsource | Five light source. |
| Power Source | Electric. |
| Voltage | 100, 115, 127, 230V |
| Body Material | Fiber-reinforce |
| Warm Up Time | 3min (flourescent) |
| Unit Color | Munsell N7 |
| Storage Temperature Range | 32°F to 104°F / 0°C to 40°C |
| Service Indicator | Yes |
| Safety | ETL Listed |
| Shipped Weight | 70 lbs / 31.5 kg |
| Operating Temperature Range | Material |
| Light Level Sensor | N/A |
| Languages Supported | English |
| Lamp Timer | Yes |
| Lamp Life | 2000 hrs |
| Internal Temperature & Humidity Sensor | No |
| Instrument Display | Indicator Light |
| Humidity | Rh 0 to 95% max (non-condensing) |
| Communication Interface | Touchpad |
| Calibration | No |
| Light Source | D50 or D65, CWF, UVA, CIE A, and one of TL83, TL84, U30, U35 |
| Visible Metamerism Index | Grade B ( AS DEFINED BY CIE 51.2-1999 TECHNICAL REPORT, “A METHOD FOR ASSESSING THE QUALITY OF DAYLIGHT SIMULATORS FOR COLORIMETRY.” ) |
| UV Metamerism Index | Grade C ( AS DEFINED BY CIE 51.2-1999 TECHNICAL REPORT, “A METHOD FOR ASSESSING THE QUALITY OF DAYLIGHT SIMULATORS FOR COLORIMETRY.” ) |
| Warranty | Two year free service |
PDF FILE OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE QC)
| Name | Details |
|---|---|
| Brochure of X-Rite MACBETH Light Box | Color Matching Cabinet (Judge QC) | View |
| Manual of X-Rite MACBETH Light Box | Color Matching Cabinet (Judge QC) | View |
LIGHT SOURCE OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE QC)
- Daylight: CIE D65 (6500 K) or CIE D50 (5000 K).
- Store 1: Halophosphor – Cool White (CWF) (4100 K) or CIE D50 (5000 K) in Dual Daylight Models.
- Store 2: Triphosphor – 840 (4000 K) or 835 (3500 K) or 830 (3000 K) or Halophosphor – Cool White (CWF)(4100 K).
- Home: CIE Illuminant A (2856 K).
- UV: Ultraviolet (Fluorescent Black Light).
