ZEBRA 4-Inch Value Desktop Printer (ZD230)
- Resolution 203 dpi/8 dots per mm.
- Memory 128 MB Flash; 128 MB SDRAM.
- Maximum Print Width 4.09 in./104 mm for 203 dpi.
- Programmable Print Speed 6 in./152 mm per second or 4 in./102 mm per second.

ZEBRA 4-Inch Value Desktop Printer (ZD230)
Request a Call Back
- Ask a Question

ZEBRA 4-Inch Value Desktop Printer (ZD230)
Ask a Question

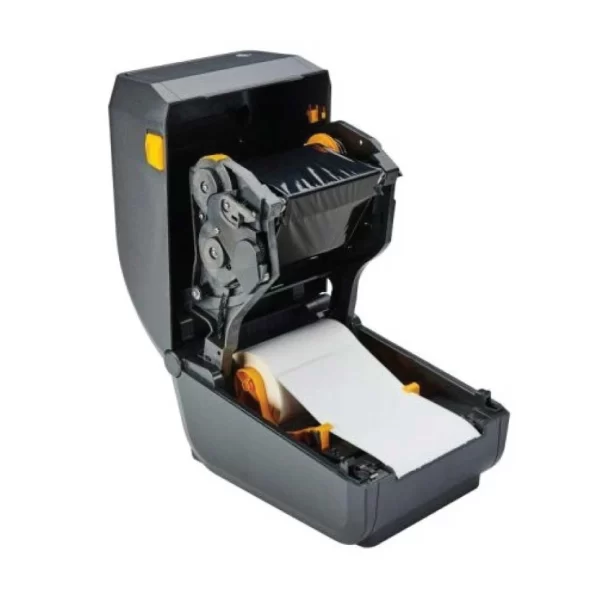

The Zebra ZD230 is a barcode label printer. It is very simple to install and begin printing. It uses ZPL and EPL programming languages. It has built-in factory-installed USB, Ethernet, USB 802.11ac Wi-Fi and Bluetooth 4.1 which enables universal interoperability. It can accommodate a 300m ribbon roll to lengthen the time between media changes. The 4-inch printer produces labels quickly, up to 6รข per second. To make it easy to operate and identify printer status, a single LED indicator and a single button for feed/pause have been used. It can print at the resolution of 203 dpi/8 dots per mm. A movable black mark sensor, limited range from centre to left side and Fixed off-centre gap sensor has been used in this barcode printer. A factory-installed peeler or cutter has been used for media handling. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
FEATURES OF ZEBRA 4-INCH VALUE DESKTOP PRINTER (ZD230)
- Resolution 203 dpi/8 dots per mm.
- Memory 128 MB Flash; 128 MB SDRAM.
- Maximum Print Width 4.09 in./104 mm for 203 dpi.
- Programmable Print Speed 6 in./152 mm per second or 4 in./102 mm per second.
- Media Sensors Movable black mark sensor, limited range from center to left side.
- Fixed off-center gap sensor.
- Firmware ZPL II; EPL 2; XML.
SPECIFICATION OF ZEBRA 4-INCH VALUE DESKTOP PRINTER (ZD230)
| Name | Details |
| Model | ZD230 |
| Brand | Zebra |
| Origin | China |
| Dimension | Thermal Transfer:10.5 in. L x 7.75 in. W x 7.5 in. H267 mm L x 197 mm W x 191 mm HDirect Thermal8.6 in. L x 6.9 in. W x 5.9 in. H220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs/1.1 kg |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed | 6 in./152 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left sideFixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XML |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m)1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 Meter ribbon 1 in./25.4 mm74 Meter ribbon 0.5 in./12.7 mm |
PACKING INFORMATION OF ZEBRA 4-INCH VALUE DESKTOP PRINTER (ZD230)
